Frost Proof Hydrants
Stay Flowing All Winter Long
Product Description

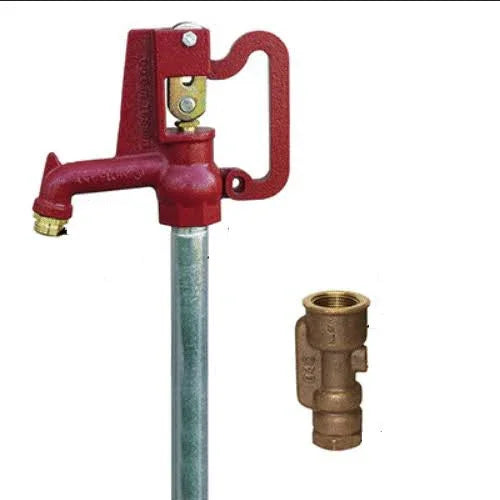

Merrill - CNF-1000 No Lead Frost Proof Yard Hydrant allows for year round water service. Frost proof yard hydrants drains below the frost line once shut off minimizing water freezing in the pipes. This frost proof hydrant comes with a one foot bury depth. The length of bury depth on the hydrant you need depends on the depth the water lines are buried in your area and the frost depth. Locking eye on head and lever allows each hydrant to be padlocked shut when not in use.
Specifications:
- Inlet - 3/4" NPT in Heavy No Lead Casting
- Outlet - 3/4" No Lead Hose Adapter
- Stainless Steel Operating Rod Thru Teflonb Packing
- Self-Lubricating Plunger
- No Lead Brass Valve Body
- 1" Galvanized Stand Pipe
- 3/8" Operating Rod
- Available in RED or GREEN
Product Description
Merrill - CNF-1000 No Lead Frost Proof Yard Hydrant allows for year round water service. Frost proof yard hydrants drains below the frost line once shut off minimizing water freezing in the pipes. This frost proof hydrant comes with a 1.5 foot bury depth. The length of bury depth on the hydrant you need depends on the depth the water lines are buried in your area and the frost depth. Locking eye on head and lever allows each hydrant to be padlocked shut when not in use.
Specifications:
- Inlet - 3/4" NPT in Heavy No Lead Casting
- Outlet - 3/4" No Lead Hose Adapter
- Stainless Steel Operating Rod Thru Teflonb Packing
- Self-Lubricating Plunger
- No Lead Brass Valve Body
- 1" Galvanized Stand Pipe
- 3/8" Operating Rod
Product Description
Merrill - CNF-1000 No Lead Frost Proof Yard Hydrant allows for year round water service. Frost proof yard hydrants drains below the frost line once shut off minimizing water freezing in the pipes. This frost proof hydrant comes with a 2 foot bury depth. The length of bury depth on the hydrant you need depends on the depth the water lines are buried in your area and the frost depth. Locking eye on head and lever allows each hydrant to be padlocked shut when not in use.
Specifications:
- Inlet - 3/4" NPT in Heavy No Lead Casting
- Outlet - 3/4" No Lead Hose Adapter
- Stainless Steel Operating Rod Thru Teflonb Packing
- Self-Lubricating Plunger
- No Lead Brass Valve Body
- 1" Galvanized Stand Pipe
- 3/8" Operating Rod
Product Description
Merrill - CNF-1000 No Lead Frost Proof Yard Hydrant allows for year round water service. Frost proof yard hydrants drains below the frost line once shut off minimizing water freezing in the pipes. This frost proof hydrant comes with a 3 foot bury depth. The length of bury depth on the hydrant you need depends on the depth the water lines are buried in your area and the frost depth. Locking eye on head and lever allows each hydrant to be padlocked shut when not in use.
Specifications:
- Inlet - 3/4" NPT in Heavy No Lead Casting
- Outlet - 3/4" No Lead Hose Adapter
- Stainless Steel Operating Rod Thru Teflonb Packing
- Self-Lubricating Plunger
- No Lead Brass Valve Body
- 1" Galvanized Stand Pipe
- 3/8" Operating Rod

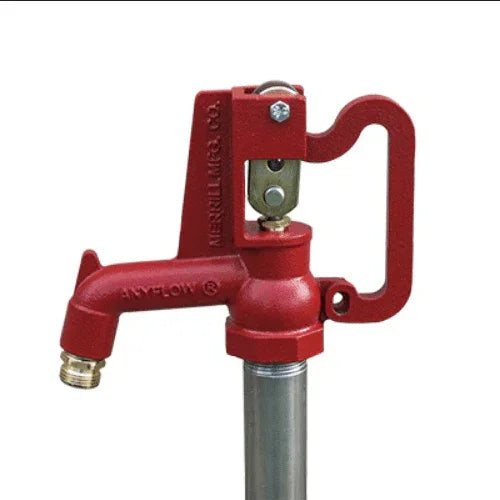

Merrill Frost Proof Hydrant AFNL7501 Any Flow® Hi-Capacity Frost-Proof Yard Hydrant - High Use - 1ft
Merrill Frost Proof Hydrant AFNL7501 Any Flow® Hi-Capacity Frost-Proof Yard Hydrant - High Use - 1ft
Description
The Merrill™ Any Flow® Yard Hydrant gives year-round water service; it drains below the frostline when shut off. The Any Flow® hydrant has had only a few improvements since 1949. These improvements, the exclusive features and benefits and the time-proven basic design, is why we believe the Any Flow® is the best yard hydrant manufactured by anyone in the world.
Merrill™ Any Flow® Yard Hydrant, Hi-Capacity Frost-Proof, Series: Any Flow®, 3/4 in Nominal, NPTxHose Thread, 7 ft Bury Depth, 117-1/2 in Overall Length, 7/16 in Rod Dia, Lever Handle Shut-Off Type, Stainless Steel Rod, Domestic
Features
- Lever control operates by cam principle and provides variable flow from trickle to full force
- Draw straps are made of 1040 hot rolled steel which is much harder (Brinell 175/200) and stronger, greatly reduces wear of straps and eliminates side pull on operating rod
- Stainless steel operating rod is ground and polished and will not cut out packing and packing nut, like brass rod used by other companies, best material for longest operating life
- Heavy duty hose adapter threaded for standard 3/4 in hose coupling
- Extra thick walled head casting greatly reduces breakage and insures longer life
- Pivot connector with two nuts provides simple positive adjustment and eliminates unreliable set screws
- No exposed threads on galvanized rod and threads on galvanized pipe are coated with bitumastic to prevent rusting and prolong life of hydrant
- Extra thick walled valve body to insure longer life and trouble free service
- Patented plunger arrangement ensures even flow from trickle to full force, closes drain at Any Flow® rate and opens drain in off position to prevent freezing
- Krayton G cup seals provides a much longer life than leather, close tolerance uniformity, unaffected by chemicals and passed a 1 million cycle test
- 3/8L beveled bibb washer made of SBR compound with 90 durometer hardness, assures positive shut-off and longer life than soft one piece plunger
- Stainless steel spring takes up slack of normal wear and eliminates numerous adjustments of hydrant head linkage
- Swivel parts permit withdrawal of moving parts without digging up hydrant, nothing in head assembly to disconnect or adjust when removing, simply unscrew entire head assembly from galvanized pipe and pull up valve stem with plunger for inspection
- If parts don't swivel, they could be unscrewed from rod when taking off head above ground
- No lead brass valve body
- 3/4 in no lead hose thread adapter stainless steel operating rod thru Teflon® packing automatic self-adjusting plunger
- Automatic self-adjusting plunger
- 1 in galvanized stand pipe
- Galvanized operating rod
- 3/4 in NPT heavy no lead casting
Specs
| Bury Depth | 1 ft |
| Domestic / Import | Domestic |
| End Style | NPT x Hose Threaded |
| Manufacturer | Merrill |
| Manufacturer # | AFNL7501 |
| Nominal Size | 3/4 in |
| Overall Length | 45.5 in |
| Rod Diameter | 7/16 in |
| Rod Material | Stainless Steel |
| Series | Any Flow® |
| Shut-Off Type | Lever Handle |
| Type | Hi-Capacity Frost-Proof |
Product Description
Merrill - CNF-1000 No Lead Frost Proof Yard Hydrant allows for year round water service. Frost proof yard hydrants drains below the frost line once shut off minimizing water freezing in the pipes. This frost proof hydrant comes with a 4 foot bury depth. The length of bury depth on the hydrant you need depends on the depth the water lines are buried in your area and the frost depth. Locking eye on head and lever allows each hydrant to be padlocked shut when not in use.
Specifications:
- Inlet - 3/4" NPT in Heavy No Lead Casting
- Outlet - 3/4" No Lead Hose Adapter
- Stainless Steel Operating Rod Thru Teflonb Packing
- Self-Lubricating Plunger
- No Lead Brass Valve Body
- 1" Galvanized Stand Pipe
- 3/8" Operating Rod
Merrill Frost Proof Hydrant AFNL7502 Any Flow® Hi-Capacity Frost-Proof Yard Hydrant - High Use - 2ft
Merrill Frost Proof Hydrant AFNL7502 Any Flow® Hi-Capacity Frost-Proof Yard Hydrant - High Use - 2ft
Description
The Merrill™ Any Flow® Yard Hydrant gives year-round water service; it drains below the frostline when shut off. The Any Flow® hydrant has had only a few improvements since 1949. These improvements, the exclusive features and benefits and the time-proven basic design, is why we believe the Any Flow® is the best yard hydrant manufactured by anyone in the world.
Merrill™ Any Flow® Yard Hydrant, Hi-Capacity Frost-Proof, Series: Any Flow®, 3/4 in Nominal, NPTxHose Thread, 7 ft Bury Depth, 117-1/2 in Overall Length, 7/16 in Rod Dia, Lever Handle Shut-Off Type, Stainless Steel Rod, Domestic
Features
- Lever control operates by cam principle and provides variable flow from trickle to full force
- Draw straps are made of 1040 hot rolled steel which is much harder (Brinell 175/200) and stronger, greatly reduces wear of straps and eliminates side pull on operating rod
- Stainless steel operating rod is ground and polished and will not cut out packing and packing nut, like brass rod used by other companies, best material for longest operating life
- Heavy duty hose adapter threaded for standard 3/4 in hose coupling
- Extra thick walled head casting greatly reduces breakage and insures longer life
- Pivot connector with two nuts provides simple positive adjustment and eliminates unreliable set screws
- No exposed threads on galvanized rod and threads on galvanized pipe are coated with bitumastic to prevent rusting and prolong life of hydrant
- Extra thick walled valve body to insure longer life and trouble free service
- Patented plunger arrangement ensures even flow from trickle to full force, closes drain at Any Flow® rate and opens drain in off position to prevent freezing
- Krayton G cup seals provides a much longer life than leather, close tolerance uniformity, unaffected by chemicals and passed a 1 million cycle test
- 3/8L beveled bibb washer made of SBR compound with 90 durometer hardness, assures positive shut-off and longer life than soft one piece plunger
- Stainless steel spring takes up slack of normal wear and eliminates numerous adjustments of hydrant head linkage
- Swivel parts permit withdrawal of moving parts without digging up hydrant, nothing in head assembly to disconnect or adjust when removing, simply unscrew entire head assembly from galvanized pipe and pull up valve stem with plunger for inspection
- If parts don't swivel, they could be unscrewed from rod when taking off head above ground
- No lead brass valve body
- 3/4 in no lead hose thread adapter stainless steel operating rod thru Teflon® packing automatic self-adjusting plunger
- Automatic self-adjusting plunger
- 1 in galvanized stand pipe
- Galvanized operating rod
- 3/4 in NPT heavy no lead casting
Specs
| Bury Depth | 2 ft |
| Domestic / Import | Domestic |
| End Style | NPT x Hose Threaded |
| Manufacturer | Merrill |
| Manufacturer # | AFNL7507 |
| Nominal Size | 3/4 in |
| Overall Length | 57.5 in |
| Rod Diameter | 7/16 in |
| Rod Material | Stainless Steel |
| Series | Any Flow® |
| Shut-Off Type | Lever Handle |
| Type | Hi-Capacity Frost-Proof |

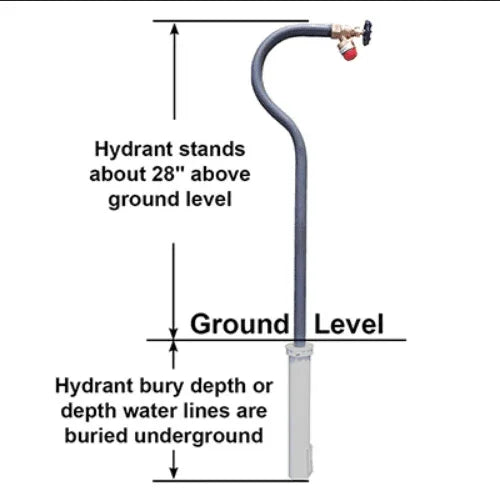

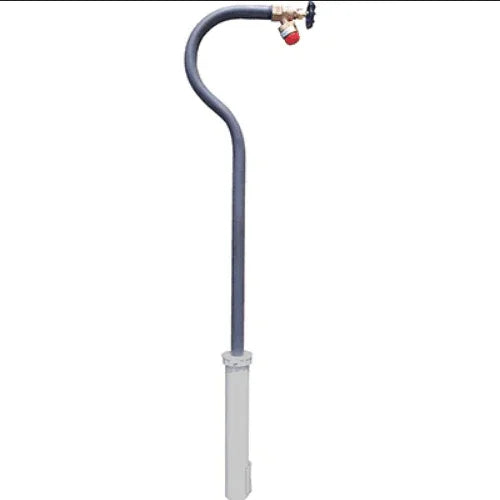

Merrill Frost Proof Hydrant Hide-Drant Removable and Sanitary Hydrant - HIDE2750 PVC, 1' Bury Depth
Merrill Frost Proof Hydrant Hide-Drant Removable and Sanitary Hydrant - HIDE2750 PVC, 1' Bury Depth
Product Description
The Merrill Hide-Drant is a sanitary yard hydrant that has been approved as such in even the most restrictive states like; Illinois, Indiana, Michigan, Ohio, and Wisconsin. Available in stainless or PVC and with a curved or straight neck, Merrill provides a sanitary hydrant option for you. The Hide-Drant's standpipe can be removed with three counter-clockwise turns, then drain the standpipe of water and your Hide-Drant is frost-proof for freezing temps. The stop valve at the bottom of the Hide-Drant is automatically opened when the standpipe is reinstalled. The seals between the stop valve and the standpipe are water-tight before the valve is reopened. The Hide-Drant's outlet can be set to any direction by simply tightening the standpipe the three turns from where you want the outlet to be.
Specifications:
Standard All PVC Galvanized 3/4" Hide Drant Complete
- Inlet - 3/4" Female NPT into Stainless Steel
- Outlet - 3/4" No-Lead Brass Vacuum Breaker
- 3/4" Galvanized Stand Pipe
- Bottom Case 1-1/2" Sch. 40 PVC
- Repairable Stainless Steel Stop Valve
- * ASSE Approved Vacuum Breaker and Outlet Valve Included ♦ Ball Valve Included
Features
- Frost proof: when used correctly, simply turn counter-clockwise three turns to disconnect and remove stand pipe, then drain stand pipe for freezing temperatures, very simple, no tools required to remove and reinstall stand pipe
- Stop valve at bottom of Hide-Drant® is automatically opened when stand pipe is reinstalled, very simple, reliable stop valve, one moving part, stainless steel spring, also designed so field repairable
- Seals between stop valve and stand pipe holds water before valve is reopened
- Outlet can be in any direction - by simply pivoting outlet counter-clockwise to direction desired, approximately three revolutions needed to remove stand pipe, do not over tighten stand pipe by forcing clockwise revolution of outlet, Only hydrant that allows outlet to be in any direction, no tools required - pivots by hand
- Non-corrosive construction to insure a long operating life, stop valve available in PVC and other components are made of non-corrosive materials, quality, non-corrosive construction for years of service
- Bottom case has one way flapper drain to remove any spilled water in case, plus cover over drain on outside of case protects drain from backfill, helps bottom case and stop valve to stay sanitary
- No tools required (after initial installation) - hydrant riser pipe can be removed and reinstalled in seconds with only a few turns, do not use tools
- Removable riser pipe so you can mow right over the bottom case and improves appearance of landscape for additional applications
- No lead compliance - models available in both yard hydrant and straight models, that are no Lead
- 1-1/2 in SCH 40 PVC bottom case
- 3/4 in SCH 80 PVC stand pipe
- 3/4 in FNPT into extra heavy wall PVC Inlet
- 3/4 in no lead brass vacuum breaker outlet
Includes
| Domestic/Import | Domestic |
| Shut-Off Type | Pivot |
| Overall Length | 40 in |
| Series | Hide-Drant® |
| Bury Depth | 1 ft |
| Nominal Size | 3/4 in |
| End Style | FNPT |
| Type | Standard Frost-Proof |
Product Description
The Merrill Hide-Drant is a sanitary yard hydrant that has been approved as such in even the most restrictive states like; Illinois, Indiana, Michigan, Ohio, and Wisconsin. Available in stainless or PVC and with a curved or straight neck, Merrill provides a sanitary hydrant option for you. The Hide-Drant's standpipe can be removed with three counter-clockwise turns, then drain the standpipe of water and your Hide-Drant is frost-proof for freezing temps. The stop valve at the bottom of the Hide-Drant is automatically opened when the standpipe is reinstalled. The seals between the stop valve and the standpipe are water-tight before the valve is reopened. The Hide-Drant's outlet can be set to any direction by simply tightening the standpipe the three turns from where you want the outlet to be.
Specifications:
Standard All PVC Galvanized 3/4" Hide Drant Complete
- Inlet - 3/4" Female NPT into Stainless Steel
- Outlet - 3/4" No-Lead Brass Vacuum Breaker
- 3/4" Galvanized Stand Pipe
- Bottom Case 1-1/2" Sch. 40 PVC
- Repairable Stainless Steel Stop Valve
- * ASSE Approved Vacuum Breaker and Outlet Valve Included ♦ Ball Valve Included
Features
- Frost proof: when used correctly, simply turn counter-clockwise three turns to disconnect and remove stand pipe, then drain stand pipe for freezing temperatures, very simple, no tools required to remove and reinstall stand pipe
- Stop valve at bottom of Hide-Drant® is automatically opened when stand pipe is reinstalled, very simple, reliable stop valve, one moving part, stainless steel spring, also designed so field repairable
- Seals between stop valve and stand pipe holds water before valve is reopened
- Outlet can be in any direction - by simply pivoting outlet counter-clockwise to direction desired, approximately three revolutions needed to remove stand pipe, do not over tighten stand pipe by forcing clockwise revolution of outlet, Only hydrant that allows outlet to be in any direction, no tools required - pivots by hand
- Non-corrosive construction to insure a long operating life, stop valve available in PVC and other components are made of non-corrosive materials, quality, non-corrosive construction for years of service
- Bottom case has one way flapper drain to remove any spilled water in case, plus cover over drain on outside of case protects drain from backfill, helps bottom case and stop valve to stay sanitary
- No tools required (after initial installation) - hydrant riser pipe can be removed and reinstalled in seconds with only a few turns, do not use tools
- Removable riser pipe so you can mow right over the bottom case and improves appearance of landscape for additional applications
- No lead compliance - models available in both yard hydrant and straight models, that are no Lead
- 1-1/2 in SCH 40 PVC bottom case
- 3/4 in SCH 80 PVC stand pipe
- 3/4 in FNPT into extra heavy wall PVC Inlet
- 3/4 in no lead brass vacuum breaker outlet
Includes
| Domestic/Import | Domestic |
| Shut-Off Type | Pivot |
| Overall Length | 52 in |
| Series | Hide-Drant® |
| Bury Depth | 2 ft |
| Nominal Size | 3/4 in |
| End Style | FNPT |
| Type | Standard Frost-Proof |
Merrill Frost Proof Hydrant AFNL7503 Any Flow® Hi-Capacity Frost-Proof Yard Hydrant - High Use - 3ft
Merrill Frost Proof Hydrant AFNL7503 Any Flow® Hi-Capacity Frost-Proof Yard Hydrant - High Use - 3ft
Description
The Merrill™ Any Flow® Yard Hydrant gives year-round water service; it drains below the frostline when shut off. The Any Flow® hydrant has had only a few improvements since 1949. These improvements, the exclusive features and benefits and the time-proven basic design, is why we believe the Any Flow® is the best yard hydrant manufactured by anyone in the world.
Merrill™ Any Flow® Yard Hydrant, Hi-Capacity Frost-Proof, Series: Any Flow®, 3/4 in Nominal, NPTxHose Thread, 7 ft Bury Depth, 117-1/2 in Overall Length, 7/16 in Rod Dia, Lever Handle Shut-Off Type, Stainless Steel Rod, Domestic
Features
- Lever control operates by cam principle and provides variable flow from trickle to full force
- Draw straps are made of 1040 hot rolled steel which is much harder (Brinell 175/200) and stronger, greatly reduces wear of straps and eliminates side pull on operating rod
- Stainless steel operating rod is ground and polished and will not cut out packing and packing nut, like brass rod used by other companies, best material for longest operating life
- Heavy duty hose adapter threaded for standard 3/4 in hose coupling
- Extra thick walled head casting greatly reduces breakage and insures longer life
- Pivot connector with two nuts provides simple positive adjustment and eliminates unreliable set screws
- No exposed threads on galvanized rod and threads on galvanized pipe are coated with bitumastic to prevent rusting and prolong life of hydrant
- Extra thick walled valve body to insure longer life and trouble free service
- Patented plunger arrangement ensures even flow from trickle to full force, closes drain at Any Flow® rate and opens drain in off position to prevent freezing
- Krayton G cup seals provides a much longer life than leather, close tolerance uniformity, unaffected by chemicals and passed a 1 million cycle test
- 3/8L beveled bibb washer made of SBR compound with 90 durometer hardness, assures positive shut-off and longer life than soft one piece plunger
- Stainless steel spring takes up slack of normal wear and eliminates numerous adjustments of hydrant head linkage
- Swivel parts permit withdrawal of moving parts without digging up hydrant, nothing in head assembly to disconnect or adjust when removing, simply unscrew entire head assembly from galvanized pipe and pull up valve stem with plunger for inspection
- If parts don't swivel, they could be unscrewed from rod when taking off head above ground
- No lead brass valve body
- 3/4 in no lead hose thread adapter stainless steel operating rod thru Teflon® packing automatic self-adjusting plunger
- Automatic self-adjusting plunger
- 1 in galvanized stand pipe
- Galvanized operating rod
- 3/4 in NPT heavy no lead casting
Specs
| Bury Depth | 3 ft |
| Domestic / Import | Domestic |
| End Style | NPT x Hose Threaded |
| Manufacturer | Merrill |
| Manufacturer # | AFNL7507 |
| Nominal Size | 3/4 in |
| Overall Length | 69.5 in |
| Rod Diameter | 7/16 in |
| Rod Material | Stainless Steel |
| Series | Any Flow® |
| Shut-Off Type | Lever Handle |
| Type | Hi-Capacity Frost-Proof |
Product Description
The Merrill Hide-Drant is a sanitary yard hydrant that has been approved as such in even the most restrictive states like; Illinois, Indiana, Michigan, Ohio, and Wisconsin. Available in stainless or PVC and with a curved or straight neck, Merrill provides a sanitary hydrant option for you. The Hide-Drant's standpipe can be removed with three counter-clockwise turns, then drain the standpipe of water and your Hide-Drant is frost-proof for freezing temps. The stop valve at the bottom of the Hide-Drant is automatically opened when the standpipe is reinstalled. The seals between the stop valve and the standpipe are water-tight before the valve is reopened. The Hide-Drant's outlet can be set to any direction by simply tightening the standpipe the three turns from where you want the outlet to be.
Specifications:
Standard All PVC Galvanized 3/4" Hide Drant Complete
- Inlet - 3/4" Female NPT into Stainless Steel
- Outlet - 3/4" No-Lead Brass Vacuum Breaker
- 3/4" Galvanized Stand Pipe
- Bottom Case 1-1/2" Sch. 40 PVC
- Repairable Stainless Steel Stop Valve
- *ASSE Approved Vacuum Breaker and Outlet Valve Included ♦ Ball Valve Included
Features
- Frost proof: when used correctly, simply turn counter-clockwise three turns to disconnect and remove stand pipe, then drain stand pipe for freezing temperatures, very simple, no tools required to remove and reinstall stand pipe
- Stop valve at bottom of Hide-Drant® is automatically opened when stand pipe is reinstalled, very simple, reliable stop valve, one moving part, stainless steel spring, also designed so field repairable
- Seals between stop valve and stand pipe holds water before valve is reopened
- Outlet can be in any direction - by simply pivoting outlet counter-clockwise to direction desired, approximately three revolutions needed to remove stand pipe, do not over tighten stand pipe by forcing clockwise revolution of outlet, Only hydrant that allows outlet to be in any direction, no tools required - pivots by hand
- Non-corrosive construction to insure a long operating life, stop valve available in PVC and other components are made of non-corrosive materials, quality, non-corrosive construction for years of service
- Bottom case has one way flapper drain to remove any spilled water in case, plus cover over drain on outside of case protects drain from backfill, helps bottom case and stop valve to stay sanitary
- No tools required (after initial installation) - hydrant riser pipe can be removed and reinstalled in seconds with only a few turns, do not use tools
- Removable riser pipe so you can mow right over the bottom case and improves appearance of landscape for additional applications
- No lead compliance - models available in both yard hydrant and straight models, that are no Lead
- 1-1/2 in SCH 40 PVC bottom case
- 3/4 in SCH 80 PVC stand pipe
- 3/4 in FNPT into extra heavy wall PVC Inlet
- 3/4 in no lead brass vacuum breaker outlet
Includes
| Domestic/Import | Domestic |
| Shut-Off Type | Pivot |
| Overall Length | 64 in |
| Series | Hide-Drant® |
| Bury Depth | 3 ft |
| Nominal Size | 3/4 in |
| End Style | FNPT |
| Type | Standard Frost-Proof |
Product Description
The Merrill Hide-Drant is a sanitary yard hydrant that has been approved as such in even the most restrictive states like; Illinois, Indiana, Michigan, Ohio, and Wisconsin. Available in stainless or PVC and with a curved or straight neck, Merrill provides a sanitary hydrant option for you. The Hide-Drant's standpipe can be removed with three counter-clockwise turns, then drain the standpipe of water and your Hide-Drant is frost-proof for freezing temps. The stop valve at the bottom of the Hide-Drant is automatically opened when the standpipe is reinstalled. The seals between the stop valve and the standpipe are water-tight before the valve is reopened. The Hide-Drant's outlet can be set to any direction by simply tightening the standpipe the three turns from where you want the outlet to be.
Specifications:
Standard All PVC Galvanized 3/4" Hide Drant Complete
- Inlet - 3/4" Female NPT into Stainless Steel
- Outlet - 3/4" No-Lead Brass Vacuum Breaker
- 3/4" Galvanized Stand Pipe
- Bottom Case 1-1/2" Sch. 40 PVC
- Repairable Stainless Steel Stop Valve
- * ASSE Approved Vacuum Breaker and Outlet Valve Included ♦ Ball Valve Included
Features
- Frost proof: when used correctly, simply turn counter-clockwise three turns to disconnect and remove stand pipe, then drain stand pipe for freezing temperatures, very simple, no tools required to remove and reinstall stand pipe
- Stop valve at bottom of Hide-Drant® is automatically opened when stand pipe is reinstalled, very simple, reliable stop valve, one moving part, stainless steel spring, also designed so field repairable
- Seals between stop valve and stand pipe holds water before valve is reopened
- Outlet can be in any direction - by simply pivoting outlet counter-clockwise to direction desired, approximately three revolutions needed to remove stand pipe, do not over tighten stand pipe by forcing clockwise revolution of outlet, Only hydrant that allows outlet to be in any direction, no tools required - pivots by hand
- Non-corrosive construction to insure a long operating life, stop valve available in PVC and other components are made of non-corrosive materials, quality, non-corrosive construction for years of service
- Bottom case has one way flapper drain to remove any spilled water in case, plus cover over drain on outside of case protects drain from backfill, helps bottom case and stop valve to stay sanitary
- No tools required (after initial installation) - hydrant riser pipe can be removed and reinstalled in seconds with only a few turns, do not use tools
- Removable riser pipe so you can mow right over the bottom case and improves appearance of landscape for additional applications
- No lead compliance - models available in both yard hydrant and straight models, that are no Lead
- 1-1/2 in SCH 40 PVC bottom case
- 3/4 in SCH 80 PVC stand pipe
- 3/4 in FNPT into extra heavy wall PVC Inlet
- 3/4 in no lead brass vacuum breaker outlet
Includes
| Domestic/Import | Domestic |
| Shut-Off Type | Pivot |
| Overall Length | 76 in |
| Series | Hide-Drant® |
| Bury Depth | 4 ft |
| Nominal Size | 3/4 in |
| End Style | FNPT |
| Type | Standard Frost-Proof |
Merrill Frost Proof Hydrant AFNL7504 Any Flow® Hi-Capacity Frost-Proof Yard Hydrant - High Use - 4ft
Merrill Frost Proof Hydrant AFNL7504 Any Flow® Hi-Capacity Frost-Proof Yard Hydrant - High Use - 4ft
Description
The Merrill™ Any Flow® Yard Hydrant gives year-round water service; it drains below the frostline when shut off. The Any Flow® hydrant has had only a few improvements since 1949. These improvements, the exclusive features and benefits and the time-proven basic design, is why we believe the Any Flow® is the best yard hydrant manufactured by anyone in the world.
Merrill™ Any Flow® Yard Hydrant, Hi-Capacity Frost-Proof, Series: Any Flow®, 3/4 in Nominal, NPTxHose Thread, 7 ft Bury Depth, 117-1/2 in Overall Length, 7/16 in Rod Dia, Lever Handle Shut-Off Type, Stainless Steel Rod, Domestic
Features
- Lever control operates by cam principle and provides variable flow from trickle to full force
- Draw straps are made of 1040 hot rolled steel which is much harder (Brinell 175/200) and stronger, greatly reduces wear of straps and eliminates side pull on operating rod
- Stainless steel operating rod is ground and polished and will not cut out packing and packing nut, like brass rod used by other companies, best material for longest operating life
- Heavy duty hose adapter threaded for standard 3/4 in hose coupling
- Extra thick walled head casting greatly reduces breakage and insures longer life
- Pivot connector with two nuts provides simple positive adjustment and eliminates unreliable set screws
- No exposed threads on galvanized rod and threads on galvanized pipe are coated with bitumastic to prevent rusting and prolong life of hydrant
- Extra thick walled valve body to insure longer life and trouble free service
- Patented plunger arrangement ensures even flow from trickle to full force, closes drain at Any Flow® rate and opens drain in off position to prevent freezing
- Krayton G cup seals provides a much longer life than leather, close tolerance uniformity, unaffected by chemicals and passed a 1 million cycle test
- 3/8L beveled bibb washer made of SBR compound with 90 durometer hardness, assures positive shut-off and longer life than soft one piece plunger
- Stainless steel spring takes up slack of normal wear and eliminates numerous adjustments of hydrant head linkage
- Swivel parts permit withdrawal of moving parts without digging up hydrant, nothing in head assembly to disconnect or adjust when removing, simply unscrew entire head assembly from galvanized pipe and pull up valve stem with plunger for inspection
- If parts don't swivel, they could be unscrewed from rod when taking off head above ground
- No lead brass valve body
- 3/4 in no lead hose thread adapter stainless steel operating rod thru Teflon® packing automatic self-adjusting plunger
- Automatic self-adjusting plunger
- 1 in galvanized stand pipe
- Galvanized operating rod
- 3/4 in NPT heavy no lead casting
Specs
| Bury Depth | 4 ft |
| Domestic / Import | Domestic |
| End Style | NPT x Hose Threaded |
| Manufacturer | Merrill |
| Manufacturer # | AFNL7507 |
| Nominal Size | 3/4 in |
| Overall Length | 81.5 in |
| Rod Diameter | 7/16 in |
| Rod Material | Stainless Steel |
| Series | Any Flow® |
| Shut-Off Type | Lever Handle |
| Type | Hi-Capacity Frost-Proof |
Product Description
The Merrill Hide-Drant is a sanitary yard hydrant that has been approved as such in even the most restrictive states like; Illinois, Indiana, Michigan, Ohio, and Wisconsin. Available in stainless or PVC and with a curved or straight neck, Merrill provides a sanitary hydrant option for you. The Hide-Drant's standpipe can be removed with three counter-clockwise turns, then drain the standpipe of water and your Hide-Drant is frost-proof for freezing temps. The stop valve at the bottom of the Hide-Drant is automatically opened when the standpipe is reinstalled. The seals between the stop valve and the standpipe are water-tight before the valve is reopened. The Hide-Drant's outlet can be set to any direction by simply tightening the standpipe the three turns from where you want the outlet to be.
Specifications:
Standard Stainless Steel Galvanized 3/4" Hide Drant Complete
- Inlet - 3/4" Female NPT into Stainless Steel
- Outlet - 3/4" No-Lead Brass Vacuum Breaker
- 3/4" Galvanized Stand Pipe
- Bottom Case 1-1/2" Sch. 40 PVC
- Repairable Stainless Steel Stop Valve
- * ASSE Approved Vacuum Breaker and Outlet Valve Included ♦ Ball Valve Included
Features
- Frost proof: when used correctly, simply turn counter-clockwise three turns to disconnect and remove stand pipe, then drain stand pipe for freezing temperatures, very simple, no tools required to remove and reinstall stand pipe
- Stop valve at bottom of Hide-Drant® is automatically opened when stand pipe is reinstalled, very simple, reliable stop valve, one moving part, stainless steel spring, also designed so field repairable
- Seals between stop valve and stand pipe holds water before valve is reopened
- Outlet can be in any direction - by simply pivoting outlet counter-clockwise to direction desired, approximately three revolutions needed to remove stand pipe, do not over tighten stand pipe by forcing clockwise revolution of outlet, Only hydrant that allows outlet to be in any direction, no tools required - pivots by hand
- Non-corrosive construction to insure a long operating life, stop valve available in PVC and other components are made of non-corrosive materials, quality, non-corrosive construction for years of service
- Bottom case has one way flapper drain to remove any spilled water in case, plus cover over drain on outside of case protects drain from backfill, helps bottom case and stop valve to stay sanitary
- No tools required (after initial installation) - hydrant riser pipe can be removed and reinstalled in seconds with only a few turns, do not use tools
- Removable riser pipe so you can mow right over the bottom case and improves appearance of landscape for additional applications
- No lead compliance - models available in both yard hydrant and straight models, that are no Lead
- 1-1/2 in SCH 40 PVC bottom case
- 3/4 in SCH 80 PVC stand pipe
- 3/4 in FNPT into extra heavy wall PVC Inlet
- 3/4 in no lead brass vacuum breaker outlet
Includes
Specs
| Bury Depth | 1 ft |
| Domestic / Import | Domestic |
| End Style | FNPT |
| Manufacturer | Merrill |
| Manufacturer # | HIDESS27505 |
| Nominal Size | 3/4 in |
| Overall Length | 40 in |
| Series | Hide-Drant® |
| Type | Standard Frost-Proof |
Product Description
The Merrill Hide-Drant is a sanitary yard hydrant that has been approved as such in even the most restrictive states like; Illinois, Indiana, Michigan, Ohio, and Wisconsin. Available in stainless or PVC and with a curved or straight neck, Merrill provides a sanitary hydrant option for you. The Hide-Drant's standpipe can be removed with three counter-clockwise turns, then drain the standpipe of water and your Hide-Drant is frost-proof for freezing temps. The stop valve at the bottom of the Hide-Drant is automatically opened when the standpipe is reinstalled. The seals between the stop valve and the standpipe are water-tight before the valve is reopened. The Hide-Drant's outlet can be set to any direction by simply tightening the standpipe the three turns from where you want the outlet to be.
Specifications:
Standard Stainless Steel Galvanized 3/4" Hide Drant Complete
- Inlet - 3/4" Female NPT into Stainless Steel
- Outlet - 3/4" No-Lead Brass Vacuum Breaker
- 3/4" Galvanized Stand Pipe
- Bottom Case 1-1/2" Sch. 40 PVC
- Repairable Stainless Steel Stop Valve
- * ASSE Approved Vacuum Breaker and Outlet Valve Included ♦ Ball Valve Included
Features
- Frost proof: when used correctly, simply turn counter-clockwise three turns to disconnect and remove stand pipe, then drain stand pipe for freezing temperatures, very simple, no tools required to remove and reinstall stand pipe
- Stop valve at bottom of Hide-Drant® is automatically opened when stand pipe is reinstalled, very simple, reliable stop valve, one moving part, stainless steel spring, also designed so field repairable
- Seals between stop valve and stand pipe holds water before valve is reopened
- Outlet can be in any direction - by simply pivoting outlet counter-clockwise to direction desired, approximately three revolutions needed to remove stand pipe, do not over tighten stand pipe by forcing clockwise revolution of outlet, Only hydrant that allows outlet to be in any direction, no tools required - pivots by hand
- Non-corrosive construction to insure a long operating life, stop valve available in PVC and other components are made of non-corrosive materials, quality, non-corrosive construction for years of service
- Bottom case has one way flapper drain to remove any spilled water in case, plus cover over drain on outside of case protects drain from backfill, helps bottom case and stop valve to stay sanitary
- No tools required (after initial installation) - hydrant riser pipe can be removed and reinstalled in seconds with only a few turns, do not use tools
- Removable riser pipe so you can mow right over the bottom case and improves appearance of landscape for additional applications
- No lead compliance - models available in both yard hydrant and straight models, that are no Lead
- 1-1/2 in SCH 40 PVC bottom case
- 3/4 in SCH 80 PVC stand pipe
- 3/4 in FNPT into extra heavy wall PVC Inlet
- 3/4 in no lead brass vacuum breaker outlet
Includes
Specs
| Bury Depth | 2 ft |
| Domestic / Import | Domestic |
| End Style | FNPT |
| Manufacturer | Merrill |
| Manufacturer # | HIDESS27505 |
| Nominal Size | 3/4 in |
| Overall Length | 52 in |
| Series | Hide-Drant® |
| Type | Standard Frost-Proof |
Product Description
The Merrill Hide-Drant is a sanitary yard hydrant that has been approved as such in even the most restrictive states like; Illinois, Indiana, Michigan, Ohio, and Wisconsin. Available in stainless or PVC and with a curved or straight neck, Merrill provides a sanitary hydrant option for you. The Hide-Drant's standpipe can be removed with three counter-clockwise turns, then drain the standpipe of water and your Hide-Drant is frost-proof for freezing temps. The stop valve at the bottom of the Hide-Drant is automatically opened when the standpipe is reinstalled. The seals between the stop valve and the standpipe are water-tight before the valve is reopened. The Hide-Drant's outlet can be set to any direction by simply tightening the standpipe the three turns from where you want the outlet to be.
Specifications:
Standard Stainless Steel Galvanized 3/4" Hide Drant Complete
- Inlet - 3/4" Female NPT into Stainless Steel
- Outlet - 3/4" No-Lead Brass Vacuum Breaker
- 3/4" Galvanized Stand Pipe
- Bottom Case 1-1/2" Sch. 40 PVC
- Repairable Stainless Steel Stop Valve
- * ASSE Approved Vacuum Breaker and Outlet Valve Included ♦ Ball Valve Included
Features
- Frost proof: when used correctly, simply turn counter-clockwise three turns to disconnect and remove stand pipe, then drain stand pipe for freezing temperatures, very simple, no tools required to remove and reinstall stand pipe
- Stop valve at bottom of Hide-Drant® is automatically opened when stand pipe is reinstalled, very simple, reliable stop valve, one moving part, stainless steel spring, also designed so field repairable
- Seals between stop valve and stand pipe holds water before valve is reopened
- Outlet can be in any direction - by simply pivoting outlet counter-clockwise to direction desired, approximately three revolutions needed to remove stand pipe, do not over tighten stand pipe by forcing clockwise revolution of outlet, Only hydrant that allows outlet to be in any direction, no tools required - pivots by hand
- Non-corrosive construction to insure a long operating life, stop valve available in PVC and other components are made of non-corrosive materials, quality, non-corrosive construction for years of service
- Bottom case has one way flapper drain to remove any spilled water in case, plus cover over drain on outside of case protects drain from backfill, helps bottom case and stop valve to stay sanitary
- No tools required (after initial installation) - hydrant riser pipe can be removed and reinstalled in seconds with only a few turns, do not use tools
- Removable riser pipe so you can mow right over the bottom case and improves appearance of landscape for additional applications
- No lead compliance - models available in both yard hydrant and straight models, that are no Lead
- 1-1/2 in SCH 40 PVC bottom case
- 3/4 in SCH 80 PVC stand pipe
- 3/4 in FNPT into extra heavy wall PVC Inlet
- 3/4 in no lead brass vacuum breaker outlet
Includes
Specs
| Bury Depth | 3 ft |
| Domestic / Import | Domestic |
| End Style | FNPT |
| Manufacturer | Merrill |
| Manufacturer # | HIDESS27505 |
| Nominal Size | 3/4 in |
| Overall Length | 64 in |
| Series | Hide-Drant® |
| Type | Standard Frost-Proof |
Product Description
The Merrill Hide-Drant is a sanitary yard hydrant that has been approved as such in even the most restrictive states like; Illinois, Indiana, Michigan, Ohio, and Wisconsin. Available in stainless or PVC and with a curved or straight neck, Merrill provides a sanitary hydrant option for you. The Hide-Drant's standpipe can be removed with three counter-clockwise turns, then drain the standpipe of water and your Hide-Drant is frost-proof for freezing temps. The stop valve at the bottom of the Hide-Drant is automatically opened when the standpipe is reinstalled. The seals between the stop valve and the standpipe are water-tight before the valve is reopened. The Hide-Drant's outlet can be set to any direction by simply tightening the standpipe the three turns from where you want the outlet to be.
Specifications:
Standard Stainless Steel Galvanized 3/4" Hide Drant Complete
- Inlet - 3/4" Female NPT into Stainless Steel
- Outlet - 3/4" No-Lead Brass Vacuum Breaker
- 3/4" Galvanized Stand Pipe
- Bottom Case 1-1/2" Sch. 40 PVC
- Repairable Stainless Steel Stop Valv
Features
- Frost proof: when used correctly, simply turn counter-clockwise three turns to disconnect and remove stand pipe, then drain stand pipe for freezing temperatures, very simple, no tools required to remove and reinstall stand pipe
- Stop valve at bottom of Hide-Drant® is automatically opened when stand pipe is reinstalled, very simple, reliable stop valve, one moving part, stainless steel spring, also designed so field repairable
- Seals between stop valve and stand pipe holds water before valve is reopened
- Outlet can be in any direction - by simply pivoting outlet counter-clockwise to direction desired, approximately three revolutions needed to remove stand pipe, do not over tighten stand pipe by forcing clockwise revolution of outlet, Only hydrant that allows outlet to be in any direction, no tools required - pivots by hand
- Non-corrosive construction to insure a long operating life, stop valve available in PVC and other components are made of non-corrosive materials, quality, non-corrosive construction for years of service
- Bottom case has one way flapper drain to remove any spilled water in case, plus cover over drain on outside of case protects drain from backfill, helps bottom case and stop valve to stay sanitary
- No tools required (after initial installation) - hydrant riser pipe can be removed and reinstalled in seconds with only a few turns, do not use tools
- Removable riser pipe so you can mow right over the bottom case and improves appearance of landscape for additional applications
- No lead compliance - models available in both yard hydrant and straight models, that are no Lead
- 1-1/2 in SCH 40 PVC bottom case
- 3/4 in SCH 80 PVC stand pipe
- 3/4 in FNPT into extra heavy wall PVC Inlet
- 3/4 in no lead brass vacuum breaker outlet
Includes
Specs
| Bury Depth | 4 ft |
| Domestic / Import | Domestic |
| End Style | FNPT |
| Manufacturer | Merrill |
| Manufacturer # | HIDESS27505 |
| Nominal Size | 3/4 in |
| Overall Length | 76 in |
| Series | Hide-Drant® |
| Type | Standard Frost-Proof |
Description
The Any Temp® H-3000 Series water riser/heated hydrant gives year-round water service with use of self-regulating heat cable, or by draining itself below frost line when shut off. The heated hydrant is a simple unit designed to provide frost proof water service. It completes the sanitary installation from buried water line to above ground water connection, or supply pipe with shut-off valve, needed for each mobile or manufactured home.
Merrill™ Deluxe Heated Yard Hydrant, Lead Free, Series: Any Temp® H-3000, 3/4 in Nominal, Pipe Threaded, 1 ft Bury Depth, 18 in Overall Length, 60 psi, Nylon Fiber Reinforced Head, Domestic
Features
- Simply turn clockwise to lock hydrant open or closed and set screw lock provided so hydrant can not be adjusted without a hex wrench, prevent vandalism or accidental shut off of water
- Outlet of hydrant 3/4 in pipe thread molded into Zytel Super Tough by DuPont, one of the world's toughest thermoplastic, standard pipe size for connection and will not corrode
- Water flow thru plunger and 1/2 in galvanized pipe or 3/4 in rigid copper, provides high flow rate needed without increasing cost
- Plunger has (4) ethylene propylene quad ring seals which never come out of adjustment, have longer life than O-rings and withstand higher pressures, longest operating life ring seals
- Heavy molded Delrin® has been used in valves for over forty years and is molded to close tolerance, will not corrode or rust out
- Extra heavy steel collar at ground level to protect hydrant from normal abuse when mowing grass or shoveling snow, hydrant will stand up to years of abuse
- Swivel parts permit withdrawal of all moving parts without digging up hydrant, very simple repair and taken apart with one tool
- Energy efficient heating cable: A high technology self-regulating cable that provides only the amount of heat needed for the varying outdoor temperature and does not waste electricity like the heat rod used by another company
- Longest life and very low cost of operation
- Heating cable built into hydrant can not be stolen like heat rod used by another company, and no electrical hazard since heating cable is not immersed in water flow thru hydrant
- Longest service life and no electrical hazard
- If unit is shut off and unplugged - winterize kit needed
- 3/4 in copper riser pipe
Includes
Specs
| Bury Depth | 1 ft |
| Domestic / Import | Domestic |
| End Style | Pipe Threaded |
| Head Material | Nylon Fiber Reinforced |
| Manufacturer | Merrill |
| Manufacturer # | DH7506D |
| Nominal Size | 3/4 in |
| Overall Length | 18 in |
| Pressure Rating | 60 psi |
| Series | Any Temp® H-3000 |
Description
The Any Temp® H-3000 Series water riser/heated hydrant gives year-round water service with use of self-regulating heat cable, or by draining itself below frost line when shut off. The heated hydrant is a simple unit designed to provide frost proof water service. It completes the sanitary installation from buried water line to above ground water connection, or supply pipe with shut-off valve, needed for each mobile or manufactured home.
Merrill™ Deluxe Heated Yard Hydrant, Lead Free, Series: Any Temp® H-3000, 3/4 in Nominal, Pipe Threaded, 2 ft Bury Depth, 30 in Overall Length, 60 psi, Nylon Fiber Reinforced Head, Domestic
Features
- Simply turn clockwise to lock hydrant open or closed and set screw lock provided so hydrant can not be adjusted without a hex wrench, prevent vandalism or accidental shut off of water
- Outlet of hydrant 3/4 in pipe thread molded into Zytel Super Tough by DuPont, one of the world's toughest thermoplastic, standard pipe size for connection and will not corrode
- Water flow thru plunger and 1/2 in galvanized pipe or 3/4 in rigid copper, provides high flow rate needed without increasing cost
- Plunger has (4) ethylene propylene quad ring seals which never come out of adjustment, have longer life than O-rings and withstand higher pressures, longest operating life ring seals
- Heavy molded Delrin® has been used in valves for over forty years and is molded to close tolerance, will not corrode or rust out
- Extra heavy steel collar at ground level to protect hydrant from normal abuse when mowing grass or shoveling snow, hydrant will stand up to years of abuse
- Swivel parts permit withdrawal of all moving parts without digging up hydrant, very simple repair and taken apart with one tool
- Energy efficient heating cable: A high technology self-regulating cable that provides only the amount of heat needed for the varying outdoor temperature and does not waste electricity like the heat rod used by another company
- Longest life and very low cost of operation
- Heating cable built into hydrant can not be stolen like heat rod used by another company, and no electrical hazard since heating cable is not immersed in water flow thru hydrant
- Longest service life and no electrical hazard
- If unit is shut off and unplugged - winterize kit needed
- 3/4 in copper riser pipe
Includes
Specs
| Bury Depth | 2 ft |
| Domestic / Import | Domestic |
| End Style | Pipe Threaded |
| Head Material | Nylon Fiber Reinforced |
| Manufacturer | Merrill |
| Manufacturer # | DH7506D |
| Nominal Size | 3/4 in |
| Overall Length | 30 in |
| Pressure Rating | 60 psi |
| Series | Any Temp® H-3000 |
Description
The Any Temp® H-3000 Series water riser/heated hydrant gives year-round water service with use of self-regulating heat cable, or by draining itself below frost line when shut off. The heated hydrant is a simple unit designed to provide frost proof water service. It completes the sanitary installation from buried water line to above ground water connection, or supply pipe with shut-off valve, needed for each mobile or manufactured home.
Merrill™ Deluxe Heated Yard Hydrant, Lead Free, Series: Any Temp® H-3000, 3/4 in Nominal, Pipe Threaded, 4 ft Bury Depth, 54 in Overall Length, 60 psi, Nylon Fiber Reinforced Head, Domestic
Features
- Simply turn clockwise to lock hydrant open or closed and set screw lock provided so hydrant can not be adjusted without a hex wrench, prevent vandalism or accidental shut off of water
- Outlet of hydrant 3/4 in pipe thread molded into Zytel Super Tough by DuPont, one of the world's toughest thermoplastic, standard pipe size for connection and will not corrode
- Water flow thru plunger and 1/2 in galvanized pipe or 3/4 in rigid copper, provides high flow rate needed without increasing cost
- Plunger has (4) ethylene propylene quad ring seals which never come out of adjustment, have longer life than O-rings and withstand higher pressures, longest operating life ring seals
- Heavy molded Delrin® has been used in valves for over forty years and is molded to close tolerance, will not corrode or rust out
- Extra heavy steel collar at ground level to protect hydrant from normal abuse when mowing grass or shoveling snow, hydrant will stand up to years of abuse
- Swivel parts permit withdrawal of all moving parts without digging up hydrant, very simple repair and taken apart with one tool
- Energy efficient heating cable: A high technology self-regulating cable that provides only the amount of heat needed for the varying outdoor temperature and does not waste electricity like the heat rod used by another company
- Longest life and very low cost of operation
- Heating cable built into hydrant can not be stolen like heat rod used by another company, and no electrical hazard since heating cable is not immersed in water flow thru hydrant
- Longest service life and no electrical hazard
- If unit is shut off and unplugged - winterize kit needed
- 3/4 in copper riser pipe
Includes
Specs
| Bury Depth | 4 ft |
| Domestic / Import | Domestic |
| End Style | Pipe Threaded |
| Head Material | Nylon Fiber Reinforced |
| Manufacturer | Merrill |
| Manufacturer # | DH7506D |
| Nominal Size | 3/4 in |
| Overall Length | 54 in |
| Pressure Rating | 60 psi |
| Series | Any Temp® H-3000 |
If you're looking for a reliable way to provide water access for your campground or RV park, look no further than a frost proof hydrant. Yard hydrants are easy to install and built to withstand even the harshest winter conditions. Plus, they offer reliable access to water all year long!
Merrill hydrant is a leading manufacturer of frost proof hydrants, with products that are found on ranches, RV parks, municipalities, and more. Designed to withstand freezing temperatures and harsh winter conditions. Merrill hydrant products are built to last and provide reliable water access throughout the year. Whether you need a yard hydrant for your backyard or farm, or a commercial-grade hydrant for your campground project, Merrill has the perfect solution for you. So why wait? Shop online today and experience the superior quality and performance of Merrill hydrants!
Frost proof hydrants offer many advantages over traditional yard hydrant designs. The most obvious advantage is that they are less likely to freeze in cold weather. Frost proof hydrant designs prevents freezing by placing the valve and drain at a level below the frost line. This allows water to drain out of the hydrant, preventing ice from forming in the body of the hydrant. In addition, frost proof hydrants are less likely to leak, making them ideal for areas where water conservation is a priority. They are also easier to install and maintain than traditional yard hydrant designs. As a result, frost proof hydrant offer many advantages and should be considered when selecting a yard hydrant for your home or business.
