Midwest 50-30-20 amp GFCI RV Pedestal – Direct Bury – U075CP6010
Original price was: $450.00.$314.98Current price is: $314.98.
Cross Reference: GE1LU532ES, Jamestown 25-123, Heritage H75P-3
Download:

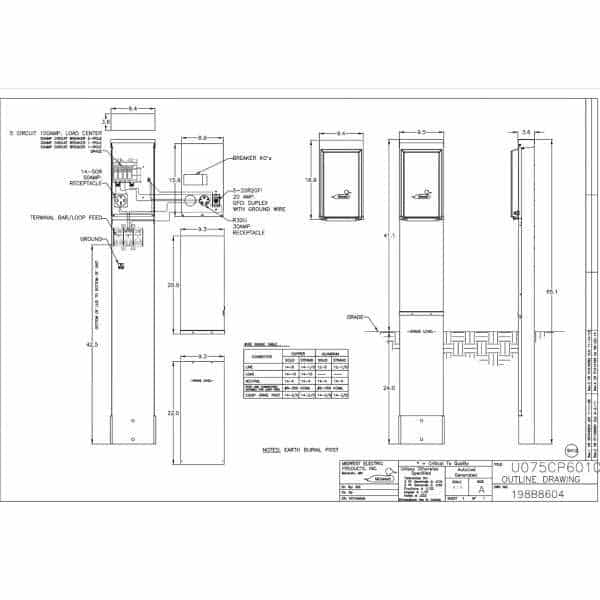

Cut Sheet – Download
Product Spec Sheet – Download
Please fill in the fields below with the shipping destination details in order to calculate the shipping cost.
- Description
- Reviews (242)
- Downloads
- Wire Sizing
Description

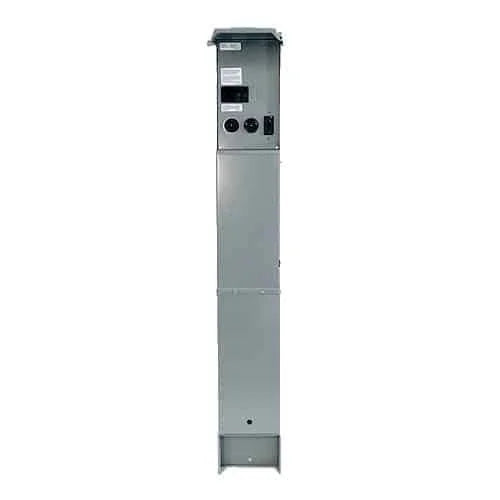

The U075CP6010 50/30/20 is our best selling non metered RV pedestal! Our pedestals are UL listed as RV supply equipment and perfect for any RV park or Campground. Tried and tested, our pedestals are currently providing power for RVers in private/state parks, national parks, county and fairgrounds from coast to coat. Each Pedestal is equipped with a factory wired socket rated to 100 continuous amps. These pedestals are manufactured using 16 – Gauge steel and NEMA 3R construction, both which resist corrosion, fading and provides lasting service. Units are available in either pad mount or direct bury pedestals and fit all standard round watt hour meters.
RV Pedestal Features:
- Non Metered
- Factory wired receptacles and breakers
- Riveted steel, powder coated for longevity
- Weather proof NEMA 3R and CSA enclosure 3R
- Pad lockable unit
- Direct bury

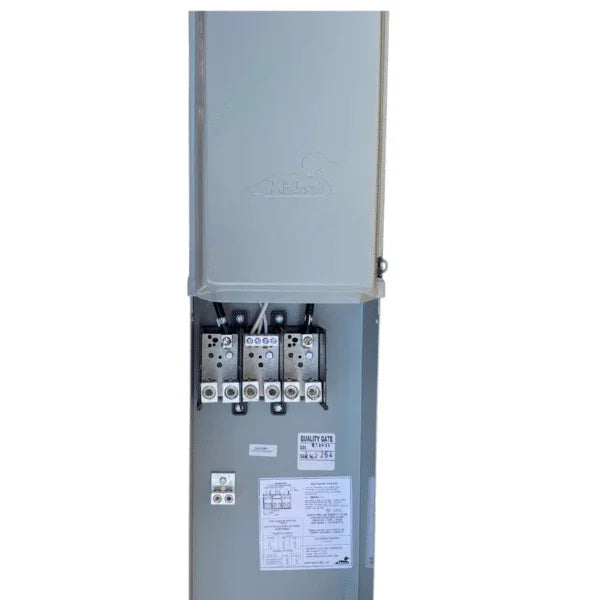

- Loop Lug
- Breakers: (1) 2-Pole 50 Amp, (1) 1-Pole 30 Amp, (1) 1-Pole 20 Amp and (1) Blank Space.
Technical Description:
Unmetered Type; G90 Galvanized Steel Material; Zinc Coated Finish; 1 AWG to 300 kcmil Solid/Stranded (Copper/Aluminum), 12 to 2 AWG Solid/Stranded (Copper/Aluminum, Ground) Wire Size; UL, CUL Approval; Earth Burial Mounting; NEMA 3R Enclosure
Product Specifications
| |
|---|---|
| UPC: | 784567571813 |
| Second Position Circuit Breaker Type: | CB130 |
| Third Position Circuit Breaker Type: | CB120 |
| Wire Size: | 1 AWG to 300 KCMIL Solid/Stranded (Copper/Aluminum), 12 to 2 AWG Solid/Stranded (Copper/Aluminum, Ground) |
| Illuminated: | No |
| Material | G90 Galvanized Steel |
| Finish: | Zinc Coated |
| Enclosure: | NEMA 3R |
| Approval: | UL, CUL |
| Additional Information: | Applicable Standard NEMA, NEC; Voltage Rating 120/240 V |
| Mounting | Earth Bury |
| Type: | Unmetered |
| |
|---|---|
| Current Rating: | 100 Amp |
| Circuit Configuration: | 1-Phase |
| Left Position Receptacle Type: | BR54U |
| Center Position Receptacle Type: | R32U |
| Right Position Receptacle Type: | No |
| Right Position Receptacle Type: | G90 Steel |
| Category: | Zinc Coated |
| Manufacturer: | Midwest Electric Products, Inc. |
| Manufacturer Part Number: | U075CTL010 |
| Product Description: | UL, CUL |
| Cross Reference: | GE1LU532SS, CESMPSC75GRHR, TL137US |
242 reviews for Midwest 50-30-20 amp GFCI RV Pedestal – Direct Bury – U075CP6010
| 5 star | 88% | |
| 4 star | 9% | |
| 3 star | 1% | |
| 2 star | 0% | |
| 1 star | 0% |
Midwest 50-30-20 amp GFCI RV Pedestal – Direct Bury – U075CP6010
| Gauge No. | Inches | Millimeters | MCM/kcmil | Circular MILS |
|---|---|---|---|---|
| 300 kcmil | 0.6300 | 16.00 | 300 kcmil | 300000 |
| 4/0 AWG (0000) | 0.4600 | 11.68 | 211.6 kcmil | 211600 |
| 3/0 AWG | 0.4096 | 10.40 | 167.8 | 167800 |
| 2/0 AWG | 0.3648 | 9.266 | 133.1 | 133100 |
| 1/0 AWG | 0.3249 | 8.251 | 105.5 | 105500 |
| 1 AWG | 0.2893 | 7.348 | 83.69 | 83690 |
