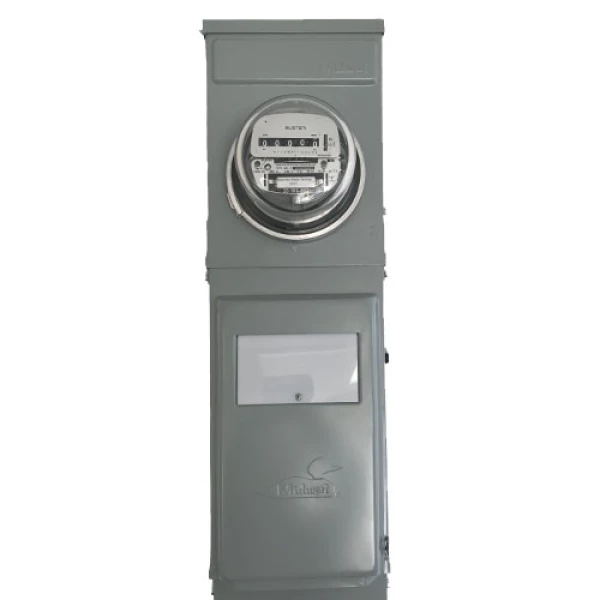

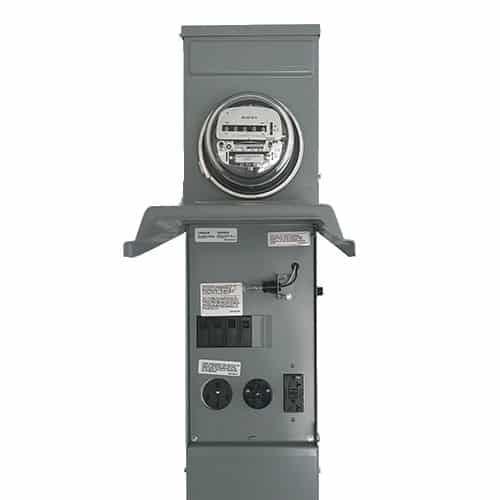

Lighted 50-30-20 Metered GCFI RV Pedestal M075CP6L10 – Direct Bury
Original price was: $858.00.$515.00Current price is: $515.00.
| Quantity | Price |
|---|---|
| 1 - 2 | $515.00 |
| 3 - 9 | $510.00 |
| 10+ | $505.00 |
Explore Matching Styles:
Calculate shipping price
Please fill in the fields below with the shipping destination details in order to calculate the shipping cost.
- Description
- Brand
- Reviews (2)
- Downloads
- Wire Sizing
Description
Our metered RV pedestals are UL listed as RV supply equipment and perfect for any RV park or Campground. Tried and tested, our pedestals are currently providing power for RVers in private/state parks, national parks, county and fairgrounds from coast to coat. Each Pedestal is equipped with a factory wired socket rated to 100 continuous amps. These pedestals are manufactured using 16 – Gauge steel and NEMA 3R construction, both which resist corrosion, fading and provides lasting service. Units are available in either pad mount or direct bury pedestals and fit all standard round watt hour meters.
Meter not included**

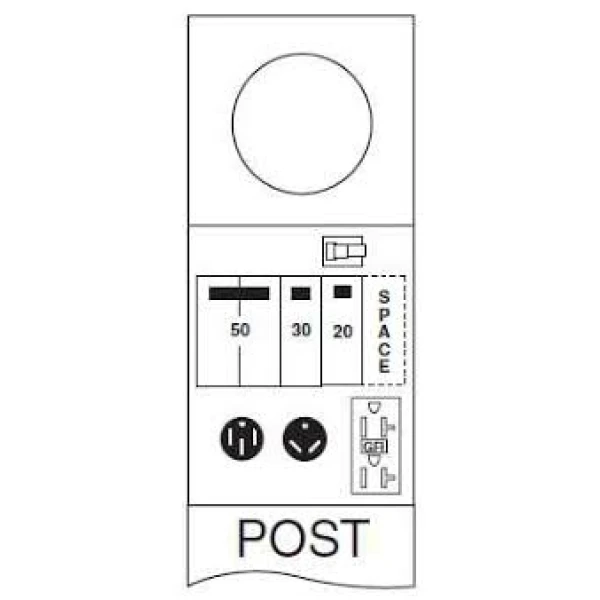

RV Pedestal Features:
- Meter Socket rated 100 continuous Amps (meter not included)
- With Photocell
- Ring type meter socket
- Fits all standard round watt hour meters
- Factory wired receptacles and breakers
- Riveted steel, powder coated for longevity
- Weather proof NEMA 3R and CSA enclosure 3R
- Pad lockable unit
- Direct bury
- Breakers: (1) 2-Pole 50 Amp, 10 kAIC, (1) 1-Pole 30 Amp, 10 kAIC, (1) 1-Pole 20 Amp, 10 kAIC.
Product Specifications
| UPC: | 78456720884 |
| Second Position Circuit Breaker Type: | CB130 |
| Third Position Circuit Breaker Type: | CB120 |
| Wire Size: | 1 AWG to 300 KCMIL Solid/Stranded (Copper/Aluminum), 12 to 2 AWG Solid/Stranded (Copper/Aluminum, Ground) |
| Illuminated: | Yes |
| Material: | G90 Galvanized Steel |
| Finish: | Zinc Coated |
| Mounting: | Earth Burial |
| Enclosure: | NEMA 3R |
| Approval: | UL, CUL |
| Additional Information: | Applicable Standard NEMA, NEC; Voltage Rating 120/240 V |
| Catalog Number: | M075CP6L10 |
| Type: | Metered Ring |
| Current Rating: | 100 Ampere |
| Circuit Configuration: | 1-Phase |
| Left Position Receptacle Type: | BR54U |
| Center Position Receptacle Type: | R32U |
| Right Position Receptacle Type: | 5-20R2GFCI |
| First Position Circuit Breaker Type: | CB250 |
| CATALOG DESCRIPTION: | MIDWEST ELECTRICS METALLIC RV UNITS ARE MANUFACTURED USING 16-GAUGE, GALVANIZED ZINC-COATED STEEL AND NEMA 3R CONSTRUCTION, WHICH RESISTS CORROSION AND FADING AND PROVIDES LASTING SERVICE IN OUTDOOR APPLICATIONS. UNITS ARE AVAILABLE IN SURFACE MOUNT AND EARTH BURIAL OR PADMOUNT POSTS, OFFERING A WIDE RANGE OF RECEPTACLE CONFIGURATIONS TO FIT YOUR NEEDS. |
| Category: | Metered Power Outlet Pedestals |
| Full Technical Description: | Metered Ring Type; G90 Galvanized Steel Material; Zinc Coated Finish; 1 AWG to 300 kcmil Solid/Stranded (Copper/Aluminum), 12 to 2 AWG Solid/Stranded (Copper/Aluminum, Ground) Wire Size; UL, CUL Approval; Earth Burial Mounting; NEMA 3R Enclosure; 100 Ampere Current Rating; 1-Phase Circuit Configuration; Yes Illuminated; CB250 First Position Circuit Breaker Type; BR54U Left Position Receptacle Type; CB120 Third Position Circuit Breaker Type; CB130 Second Position Circuit Breaker Type; 5-20R2GFCI Right Position Receptacle Type; R32U Center Position Receptacle Type; Applicable Standard NEMA, NEC; Voltage Rating 120/240 V |
| Manufacturer: | Midwest Electric Products, Inc. |
| Manufacturer Brand: | Midwest Electric Products, Inc. |
| Product Description: | MIDWEST M075CP6L10 100A POST 50/30/20GFCI LIGHTED |
| Sub-Category: | Outdoor Pedestal Mount Power Outlet Panel |
| UNSPSC: | 30102903 |
| UPC 12 Digit: | 784567208849 |
| Unique Product Key: | 6006156 |
Brand
Midwest Electric
2 reviews for Lighted 50-30-20 Metered GCFI RV Pedestal M075CP6L10 – Direct Bury
| 5 star | 100% | |
| 4 star | 0% | |
| 3 star | 0% | |
| 2 star | 0% | |
| 1 star | 0% |
1-2 of 2 reviews
Add a review
Lighted 50-30-20 Metered GCFI RV Pedestal M075CP6L10 - Direct Bury
Your review
* Review is required
Name
* Name is required
Email
* Email is required
Add photos or video to your review
| Gauge No. | Inches | Millimeters | MCM/kcmil | Circular MILS |
|---|---|---|---|---|
| 300 kcmil | 0.6300 | 16.00 | 300 kcmil | 300000 |
| 4/0 AWG (0000) | 0.4600 | 11.68 | 211.6 kcmil | 211600 |
| 3/0 AWG | 0.4096 | 10.40 | 167.8 | 167800 |
| 2/0 AWG | 0.3648 | 9.266 | 133.1 | 133100 |
| 1/0 AWG | 0.3249 | 8.251 | 105.5 | 105500 |
| 1 AWG | 0.2893 | 7.348 | 83.69 | 83690 |
