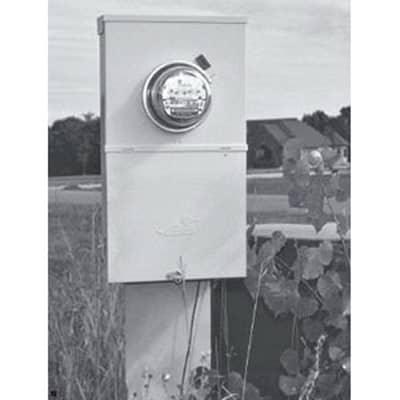

    M281CB1 - 200 AMP Metered Service Entrance - Ring Type - Image 1
    Metering Conversion Kit – Round Meter Socket & Hub Full Kit
    Midwest MS45508C 400A Ring Type Load center – All-In-One House Panel

    M281CB1 – 200 AMP Metered Service Entrance – Ring Type

    0 out of 5
    ( There are no reviews yet. )

    Original price was: $492.00.Current price is: $295.00.

    Download:
    Cut Sheet – Download
    Product Spec Sheet – Download

    Availability: |In Stock SKU: M281CB1 Categories: ,
    QuantityPrice
    1 - 2$295.00
    3 - 4$290.00
    5+$285.00
    • Additional Options
    request a quote


    Explore Matching Styles:
    Calculate shipping price

    Please fill in the fields below with the shipping destination details in order to calculate the shipping cost.

    Description

    Product Description

    Ring Type, 200 Amp, 120/240 Volt, 1-Phase, NEMA 3R, Pedestal
    The M281CB1 is a Metered Service Entrance Equipment for mobile home and manufactured homes. Where electrical power enters a building or other source, the National Electrical Code (NEC) requires electrical distribution equipment rated as “Service Entrance.” Such service equipment usually consists of one main breaker disconnect or space for up to 6 main disconnects. Midwest models meet these NEC requirements and are UL listed as service entrance equipment.
    This mobile home pedestal by Midwest is a 200 amp pedestal manufactured for surface mount applications.  The service entrance pedestal is rated with a 200 amp main breaker that is included. It has a 120/240v ring-type meter socket (meter not included) and is series wired with loop-fed lugs and 4 additional breaker spaces.

    Specifications:

    UPC: 784567585155
    Finish:  Zinc Coated
    Enclosure:  NEMA 3R
    Approval:  UL
    Additional Information:  Voltage Rating 120/240 Volt; Cabinet Dimension 14-3/8 Inch Width x 4-3/4 Inch Depth x 28-5/8 Inch Height; Mounting Type Surface; Applicable Standard NEMA, NEC
    Catalog Number:  R281CB1
    Brand Name:  Midwest Electric
    Type:  Metered Ring Type
    Current Rating:  200 Amp
    Circuit Configuration:  1-Phase
    First Position Circuit Breaker Type:  CB4200H
    Wire Size:  6 to 350 KCMIL Stranded (Copper/Aluminum, Line Meter Socket), 1 to 4 AWG Stranded (Copper/Aluminum, Load Base Lug/Neutral A), 6 to 2/0 AWG Stranded (Copper/Aluminum, Neutral/Ground B), 14 to 8 AWG Solid/14 to 4 AWG Stranded (Copper, Neutral/Ground C), 12
    Material:  G90 Galvanized Steel
    CATALOG DESCRIPTION:  NATIONAL ELECTRIC CODE REQUIRES ELECTRICAL DISTRIBUTION EQUIPMENT TO BE RATED AS SERVICE ENTRANCE, WHEREVER ELECTRICAL POWER ENTERS A BUILDING OR OTHER STRUCTURE. SERVICE ENTRANCE PRODUCTS ARE TYPICALLY UTILIZED ON SINGLE-FAMILY RESIDENCES AND MOBILE HOMES. MIDWEST ELECTRIC OFFERS A BROAD RANGE OF SURFACE MOUNT AND PEDESTAL UNITS, FACTORY ASSEMBLED AND WIRED. PEDESTAL UNITS COME STANDARD WITH LOOP FEED LUGS TO REDUCE INSTALLATION TIME AND LABOR EXPENSE. SERVICE ENTRANCE EQUIPMENT IS MADE OF HEAVY, GALVANIZED G-90 STEEL, PREVENTING CORROSION AND FADING.
    Category:  Metered Power Outlet Panels
    Full Technical Description:  Metered Ringless Type; G90 Galvanized Steel Material; Zinc Coated Finish; 6 to 350 kcmil Stranded (Copper/Aluminum, Line Meter Socket), 1 to 4 AWG Stranded (Copper/Aluminum, Load Base Lug/Neutral A), 6 to 2/0 AWG Stranded (Copper/Aluminum, Neutral/Ground B), 14 to 8 AWG Solid/14 to 4 AWG Stranded (Copper, Neutral/Ground C), 12 to 8 AWG Solid/12 to 4 AWG Stranded (Neutral/Ground C) Wire Size; UL Approval; NEMA 3R Enclosure; 200 Amp Current Rating; 1-Phase Circuit Configuration; CB4200H First Position Circuit Breaker Type; Voltage Rating 120/240 Volt; Cabinet Dimension 14-3/8 Inch Width X 4-3/4 Inch Depth X 28-5/8 Inch Height; Mounting Type Surface; Applicable Standard NEMA, NEC
    Manufacturer:  Midwest Electric Products, Inc.
    Manufacturer Brand:  Midwest Electric Products, Inc.
    Product Description:  MIDWEST R281CB1 200A SURFACE METERED 14X28
    Sub-Category:  Outdoor Surface Mount Power Outlet Panel
    UPC 12 Digit: 784567585155
