50-30-20 amp GFCI RV Pedestal - Back to Back - Metered - Direct Bury
50-30-20 amp GFCI RV Pedestal - Back to Back - Metered - Direct Bury

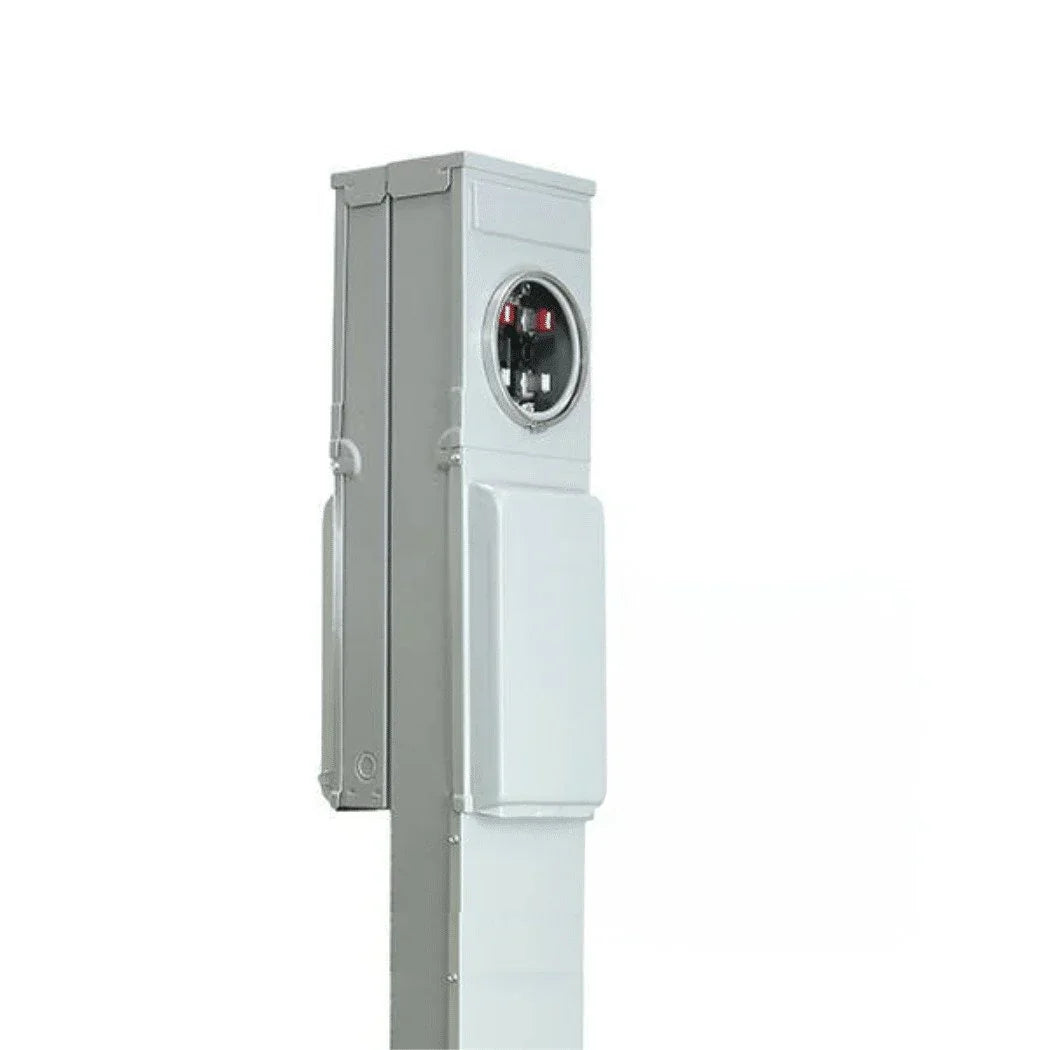

Midwest U075CB6010 100A Back-To-Back RV Pedestal 50/30/20-GFCI

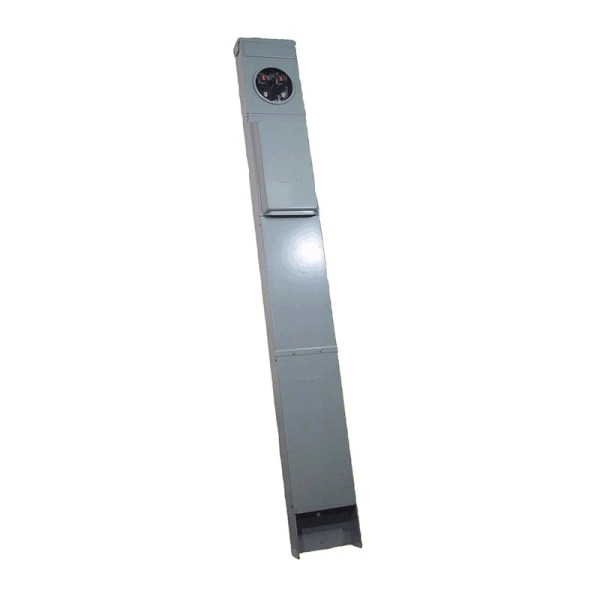

MEG APPROVED 50-30-20 RINGLESS Metered GFCI RV Pedestal – Direct Bury – R175MCP6010FMG

50-30-20 amp Ringless GFCI RV Pedestal R075CB6010 – Back to Back – Metered – Direct Bury

0 out of 5
( There are no reviews yet. )

Original price was: $1,170.00.Current price is: $819.00.

Availability:  | 6-8 Weeks SKU: M075CB6010-1 Categories: , Tags: , , , , , , , , ,
Quote
Calculate shipping price

Please fill in the fields below with the shipping destination details in order to calculate the shipping cost.

Description

Our Ringless Metered RV pedestals are c UL listed as RV supply equipment and perfect for any RV park or Campground.  Tried and tested, our pedestals are currently providing power for RVers in private/state parks, national parks, county and fairgrounds from coast to coat.  Pedestals are lockable and engineered for maximum weather protection and longevity.

RV Pedestal Features:

    • Factory wired receptacles and breakers
    • Riveted steel, powder coated for longevity
    • Weather proof NEMA 3R and CSA enclosure 3R
    • Pad lockable unit
    • Direct bury
UPC:  78456720800
Second Position Circuit Breaker Type:  CB130
Third Position Circuit Breaker Type:  CB120
Wire Size:  6 AWG to 350 KCMIL Solid/Stranded (Copper/Aluminum), 12 to 2 AWG Solid/Stranded (Copper/Aluminum, Ground)
Material:  G90 Galvanized Steel
Finish:  Zinc Coated
Mounting:  Back to Back Earth Burial
Enclosure:  NEMA 3R
Approval:  UL, CUL
Additional Information:  Applicable Standard NEMA, NEC; Voltage Rating 120/240 V
Catalog Number:  R075CB6010
Type:  Metered Ringless
Current Rating:  100 Ampere
Circuit Configuration:  1-Phase

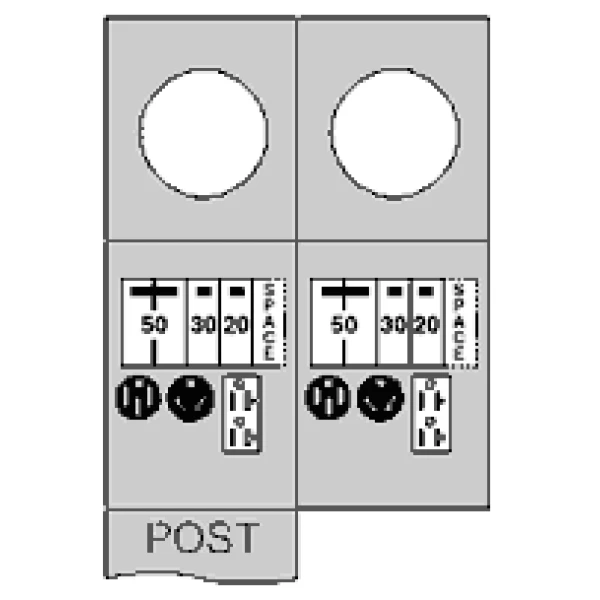

Left Position Receptacle Type:  BR54U
Center Position Receptacle Type:  R32U
Right Position Receptacle Type:  5-20R2GFCI
First Position Circuit Breaker Type:  CB250
CATALOG DESCRIPTION:  MIDWEST ELECTRICS METALLIC RV UNITS ARE MANUFACTURED USING 16-GAUGE, GALVANIZED ZINC-COATED STEEL AND NEMA 3R CONSTRUCTION, WHICH RESISTS CORROSION AND FADING AND PROVIDES LASTING SERVICE IN OUTDOOR APPLICATIONS. UNITS ARE AVAILABLE IN SURFACE MOUNT AND EARTH BURIAL OR PADMOUNT POSTS, OFFERING A WIDE RANGE OF RECEPTACLE CONFIGURATIONS TO FIT YOUR NEEDS.
Category:  Metered Power Outlet Panels
Full Technical Description:  Metered Ringless Type; G90 Galvanized Steel Material; Zinc Coated Finish; 6 AWG to 350 kcmil Solid/Stranded (Copper/Aluminum), 12 to 2 AWG Solid/Stranded (Copper/Aluminum, Ground) Wire Size; UL, CUL Approval; Back to Back Earth Burial Mounting; NEMA 3R Enclosure; 100 Ampere Current Rating; 1-Phase Circuit Configuration; CB250 First Position Circuit Breaker Type; BR54U Left Position Receptacle Type; CB120 Third Position Circuit Breaker Type; CB130 Second Position Circuit Breaker Type; 5-20R2GFCI Right Position Receptacle Type; R32U Center Position Receptacle Type; Applicable Standard NEMA, NEC; Voltage Rating 120/240 V
Manufacturer:  Midwest Electric Products, Inc.
Manufacturer Brand:  Midwest Electric Products, Inc.
Product Description:  Midwest R075CB6010 100A Back-To-Back Post 50/30/20-GFCI
Sub-Category:  Outdoor Pedestal Mount Power Outlet Panel
Loop Lug:  Yes
UPC 12 Digit:  784567208009

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Gauge No. Inches Millimeters MCM/kcmil Circular MILS
300 kcmil 0.6300 16.00 300 kcmil 300000
4/0 AWG (0000) 0.4600 11.68 211.6 kcmil 211600
3/0 AWG 0.4096 10.40 167.8 167800
2/0 AWG 0.3648 9.266 133.1 133100
1/0 AWG 0.3249 8.251 105.5 105500
1 AWG 0.2893 7.348 83.69 83690
