GS1201B20UL
MIDWEST GS1101B12UL HD TRANSFER SWITCH 100/100A 2P 120/240V STE
MIDWEST GS3161G 1-Phase Light Duty Transfer Switch, 120/240 VAC, 100 A

MIDWEST GS1202B20UL HD TRANSFER SWITCH 200/200A 2P 120/240V STE

0 out of 5
( There are no reviews yet. )

$564.00

Download
Product Cut Sheet – Download
Product Spec Sheet – Download



Availability:  | In Stock SKU: GS1201B20UL Categories: , Tags: , , , , , , ,
Calculate shipping price

Please fill in the fields below with the shipping destination details in order to calculate the shipping cost.

Add to wishlist

Description

Technical Description:
Manual Type; 15-3/4 Inch; 35 Inch; 7 Inch; 6 AWG to 250 kcmil Wire Size; UL (Canada and Us) Approval; Generator Application; 120/240 VAC 1-Phase Voltage Rating; NEMA 3R Enclosure; Aluminum/Copper Wire Type; 10000 Ampere Short Circuit Rating



Features & Benefits:

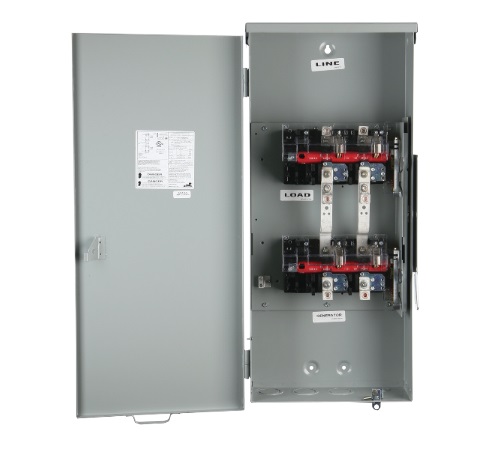

  • Heavy duty manual transfer switch provides reliable, trouble-free transfer of power from the normal utility supplied source, to a stand-by generator
  • The double throw mechanism helps prevent dangerous back-feeding of generator power into the utility system
  • Designed to be fully operational and switchable at full rated capacity quick-make, quick-break switch mechanism
  • All in one construction for factory assured terminations
  • Bus bars used to interconnect main and standby switches knife blade switch contacts provide long life
  • Heavy zinc coated steel with highest quality powder coat finish resists corrosion and fading welded flange, NEMA 3R construction, for lasting service in outdoor installations
  • Welded flange, NEMA 3R construction for lasting service in outdoor installations
  • Quality user tested components for long life
  • Suitable for use as service equipment, when installed in accordance with the NEC Interlock allows door opening only when switch is in the OFF position
  • Padlock provision in all three ON-OFF-ON transfer positions door has padlock provision
  • Door has padlock provision
  • All terminals accept copper or aluminum wire for added installation flexibility
  • Quick-make, quick-break switch mechanism on most models
  • Zinc coated steel



Product Specifications

UPC:  78456720339
Enclosure:  NEMA 3R
Height:  35 Inch
Width:  15-3/4 Inch
Depth:  7 Inch
Application:  Generator
Approval:  UL (Canada and US)
Additional Information:  Cabinet Size 15 Inch x 35 Inch; Number of Poles 2; Material G90 Galvanized Steel; Finish Polyester Powder Coated; Includes 2 Inch Hub
Catalog Number:  GS1202B20UL
Type:  Manual
Voltage Rating:  120/240 VAC 1-Phase
Main Current Rating:  200 Ampere
Emergency Current Rating:  200 Ampere
Short Circuit Rating:  10000 Ampere
Wire Type:  Aluminum/Copper
Wire Size:  6 AWG to 250 KCMIL
CATALOG DESCRIPTION:  SINGLE PHASE 120/240 VOLTS AC
Category:  Non-Fusible Double Throw Safety Switches
Full Technical Description:  Manual Type; 15-3/4 Inch; 35 Inch; 7 Inch; 6 AWG to 250 kcmil Wire Size; UL (Canada and Us) Approval; Generator Application; 120/240 VAC 1-Phase Voltage Rating; NEMA 3R Enclosure; Aluminum/Copper Wire Type; 10000 Ampere Short Circuit Rating; 200 Ampere Emergency Current Rating; 200 Ampere Main Current Rating; Cabinet Size 15 Inch X 35 Inch; Number of Poles 2; Material G90 Galvanized Steel; Finish Polyester Powder Coated; Includes 2 Inch Hub
Manufacturer:  MIDWEST ELECTRIC PRODUCTS, INC.
Manufacturer Brand:  Midwest Electric Products, Inc.
Product Description:  MIDWEST GS1202B20UL HD TRANSFER SWITCH 200/200A 2P 120/240V STE
Sub-Category:  Transfer Switch
UNSPSC:  39122214
UPC 12 Digit:  784567203394
