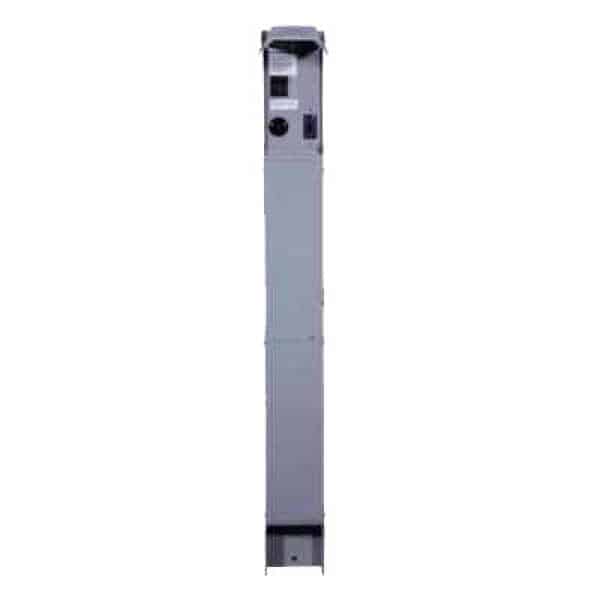

30-20 Unmetered RV pedestal U041CP6010 – Direct Bury
Original price was: $427.00.$299.00Current price is: $299.00.
Cross Reference: GE1LU032ES, H41P-5, 29-23
Explore Matching Styles:
Please fill in the fields below with the shipping destination details in order to calculate the shipping cost.
- Description
- Brand
- Reviews (16)
- Wire Sizing
Description
This RV pedestal is UL listed as RV supply equipment and perfect for any RV park or Campground. Tried and tested, our pedestals are currently providing power for RVers in private/state parks, national parks, county and fairgrounds from coast to coat. Each Pedestal is equipped with a factory wired socket rated to 100 continuous amps. These pedestals are manufactured using 16 – Gauge steel and NEMA 3R construction, both which resist corrosion, fading and provides lasting service. Units are available in either pad mount or direct bury pedestals and fit all standard round watt hour meters.
RV Pedestal Features:
- Factory wired receptacles and breakers
- Riveted steel, powder coated for longevity
- Weather proof NEMA 3R and CSA enclosure 3R
- Pad lockable unit
- Direct bury and pad mounted options available
Technical Description:
Unmetered Type; G90 Galvanized Steel Material; Zinc Coated Finish; 1 AWG to 300 kcmil Solid/Stranded (Copper/Aluminum), 12 to 2 AWG Solid/Stranded (Copper/Aluminum, Ground) Wire Size; UL, CUL Approval; Earth Burial Mounting; NEMA 3R Enclosure; 70 Ampere Current Rating; 1-Phase Circuit Configuration; CB130 First Position Circuit Breaker Type; R32U Left Position Receptacle Type; CB120 Third Position Circuit Breaker Type; CB120 Second Position Circuit Breaker Type; 5-20R2GFCI Right Position Receptacle Type; Applicable Standard NEMA, NEC; Voltage Rating 120/240 V
Product Specifications
| UPC: | 78456756882 |
| Third Position Circuit Breaker Type: | CB120 |
| Wire Size: | 1 AWG to 300 KCMIL Solid/Stranded (Copper/Aluminum), 12 to 2 AWG Solid/Stranded (Copper/Aluminum, Ground) |
| Material: | G90 Galvanized Steel |
| Finish: | Zinc Coated |
| Mounting: | Earth Burial |
| Enclosure: | NEMA 3R |
| Approval: | UL, CUL |
| Additional Information: | Applicable Standard NEMA, NEC; Voltage Rating 120/240 V |
| Catalog Number: | U041CP6010 |
| Type: | Unmetered |
| Current Rating: | 70 Ampere |
| Circuit Configuration: | 1-Phase |
| Left Position Receptacle Type: | R32U |
| Right Position Receptacle Type: | 5-20R2GFCI |
| First Position Circuit Breaker Type: | CB130 |
| Second Position Circuit Breaker Type: | CB120 |
| CATALOG DESCRIPTION: | MIDWEST ELECTRICS METALLIC RV UNITS ARE MANUFACTURED USING 16-GAUGE, GALVANIZED ZINC-COATED STEEL AND NEMA 3R CONSTRUCTION, WHICH RESISTS CORROSION AND FADING AND PROVIDES LASTING SERVICE IN OUTDOOR APPLICATIONS. UNITS ARE AVAILABLE IN SURFACE MOUNT AND EARTH BURIAL OR PADMOUNT POSTS, OFFERING A WIDE RANGE OF RECEPTACLE CONFIGURATIONS TO FIT YOUR NEEDS. |
| Category: | Unmetered Power Outlet Pedestals |
| Full Technical Description: | Unmetered Type; G90 Galvanized Steel Material; Zinc Coated Finish; 1 AWG to 300 kcmil Solid/Stranded (Copper/Aluminum), 12 to 2 AWG Solid/Stranded (Copper/Aluminum, Ground) Wire Size; UL, CUL Approval; Earth Burial Mounting; NEMA 3R Enclosure; 70 Ampere Current Rating; 1-Phase Circuit Configuration; CB130 First Position Circuit Breaker Type; R32U Left Position Receptacle Type; CB120 Third Position Circuit Breaker Type; CB120 Second Position Circuit Breaker Type; 5-20R2GFCI Right Position Receptacle Type; Applicable Standard NEMA, NEC; Voltage Rating 120/240 V |
| Manufacturer: | Midwest Electric Products, Inc. |
| Manufacturer Brand: | Midwest Electric Products, Inc. |
| Product Description: | MIDWEST U041CP6010 70A POST 30/20GFCI |
| Sub-Category: | Outdoor Pedestal Mount Power Outlet Panel |
| Loop Lug: | Yes |
| UPC 12 Digit: | 784567568820 |
| Cross Reference: |
GE1LU032ES, H41P-5, 25-23 |
Brand
Midwest Electric
16 reviews for 30-20 Unmetered RV pedestal U041CP6010 – Direct Bury
| 5 star | 81% | |
| 4 star | 18% | |
| 3 star | 0% | |
| 2 star | 0% | |
| 1 star | 0% |
30-20 Unmetered RV pedestal U041CP6010 - Direct Bury
| Gauge No. | Inches | Millimeters | MCM/kcmil | Circular MILS |
|---|---|---|---|---|
| 300 kcmil | 0.6300 | 16.00 | 300 kcmil | 300000 |
| 4/0 AWG (0000) | 0.4600 | 11.68 | 211.6 kcmil | 211600 |
| 3/0 AWG | 0.4096 | 10.40 | 167.8 | 167800 |
| 2/0 AWG | 0.3648 | 9.266 | 133.1 | 133100 |
| 1/0 AWG | 0.3249 | 8.251 | 105.5 | 105500 |
| 1 AWG | 0.2893 | 7.348 | 83.69 | 83690 |
Customers Also Purchased
-
RV Pedestals, RV Surface Mount Panel
Midwest 50/30/20 amp Unmetered surface box U075CTL010 – Loop Lug
Original price was: $439.98.$219.99Current price is: $219.99. -
Metered RV Pedestals, RV Pedestals
RINGLESS 50-30-20 Metered GFCI RV Pedestal – Direct Bury – R075CP6010
Original price was: $566.00.$396.00Current price is: $396.00. -
Metered RV Pedestals, RV Pedestals
Lighted 50-30-20 Metered GCFI RV Pedestal M075CP6L10 – Direct Bury
Original price was: $699.00.$489.00Current price is: $489.00. -
RV Pedestals, Unmetered RV Pedestals
50/30/20 GFCI 100 amp Midwest RV Pedestal – Direct Bury w/ Light
Original price was: $556.00.$389.00Current price is: $389.00. -
Metered RV Pedestals, RV Pedestals
30-20 Metered GFCI RV Pedestal M041CP6010 – Direct Bury
Original price was: $555.00.$389.00Current price is: $389.00.
Nice product, good price and ordering was easy.
Happy with the purchase, items were packaged well and we got free shipping!
I installed this under my grandmother’s shelter in order to plug in the travel trailer. The existing electrical plug no longer worked due to a (presumably) cut burial wire. I really like the fact that there is built in room for expansion in the form of 2 breaker slots that are in addition to the breakers for the 30 amp & 20 amp plugs. I used one of these breaker slots to run 2 flood light in the shelter. A big upgrade from the 0 previous lights. This box is of solid construction. The one challenge I faced had to do with the top of the box. I wanted to bring a 1″ conduit out of the top of the box. Unfortunately, this box is designed to allow only a 3″ conduit to securely exit the top. Time to get creative. I drilled a hole in the metal cover, installed a threaded adapter fitting with locking nut, removed the bolt assembly that mounts the cover to the box & used silicone to secure the cover to the box. It worked quite nicely and as an added bonus, it is very weather resistant. I am not an electrician and I’m not sure if this modification is “ok” but it works for me. The pics of this modification may show the gloss of the clear silicone that I used to secure the metal cover to the box. The original mounting bolt with cross bar interfered with placement of the threaded fitting and had to be removed. My local Lowe’s or electrical supply store did not sell any combination of reducers that could go from 3″ down to 1″ so I had to figure it out & this was the idea I came up with. I still highly recommend this temporary power panel.
What else can I say, all good
You’re thinking “It would sure be nice to know the NEMA configurations of the receptacles.” aren’t ya? It has a NEMA 5-20R GFI duplex and a NEMA 5-30R non-GFI receptacle. Both are 120V and of the configuration that you would expect for an RV camp site.
