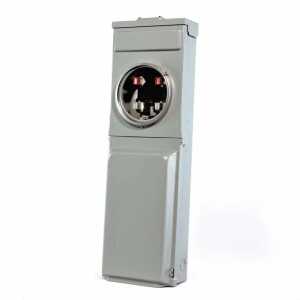

RV Pedestal 50/30/20 amp GFCI – Pad Mount – U075CP4010

Original price was: $484.00.Current price is: $339.00.

Cross Reference: GE1LU532PS, 29-12

Download:
Product Spec Sheet – Download

Availability:  | In Stock SKU: U075CP4010 Categories: , Tags: , , , , , , , , ,
Calculate shipping price

Please fill in the fields below with the shipping destination details in order to calculate the shipping cost.

Description

The U075CP4010 50/30/20 is the best selling configuration for non metered RV pedestals in a pad mount option!  Our pedestals are UL listed as RV supply equipment and perfect for any RV park or Campground.  Tried and tested, our pedestals are currently providing power for RVers in private/state parks, national parks, county and fairgrounds from coast to coat.  Each Pedestal is equipped with a factory wired socket rated to 100 continuous amps. These pedestals are manufactured using 16 – Gauge steel and NEMA 3R construction, both which resist corrosion, fading and provides lasting service.  Units are available in either pad mount or direct bury pedestals and fit all standard round watt hour meters.


Features:

  • Non Metered
  • Factory wired receptacles and breakers
  • Riveted steel, powder coated for longevity
  • Weather proof NEMA 3R and CSA enclosure 3R
  • Pad lockable unit
  • Pad Mount
  • Loop Lug
  • Breakers: (1) 2-Pole 50 Amp, (1) 1-Pole 30 Amp, (1) 1-Pole 20 Amp and (1) Blank Space.



Technical Description:

Unmetered Type; G90 Galvanized Steel Material; Zinc Coated Finish; 1 AWG to 300 kcmil Solid/Stranded (Copper/Aluminum), 12 to 2 AWG Solid/Stranded (Copper/Aluminum, Ground) Wire Size; UL, CUL Approval; Earth Burial Mounting; NEMA 3R Enclosure



Product Specifications

UPC: 784567203264
Second Position Circuit Breaker Type:  CB130
Third Position Circuit Breaker Type:  CB120
Wire Size:  1 AWG to 300 KCMIL Solid/Stranded (Copper/Aluminum), 12 to 2 AWG Solid/Stranded (Copper/Aluminum, Ground)
Material:  G90 Galvanized Steel
Finish:  Zinc Coated
Mounting:  Pad
Enclosure:  NEMA 3R
Approval:  UL, CUL
Additional Information:  Applicable Standard NEMA, NEC; Voltage Rating 120/240 V
Catalog Number:  U075CP4010
Type:  Unmetered
Current Rating:  100 Ampere
Circuit Configuration:  1-Phase
Left Position Receptacle Type:  BR54U
Center Position Receptacle Type:  BR32U
Right Position Receptacle Type:  5-20R2GFCI
First Position Circuit Breaker Type:  CB250
CATALOG DESCRIPTION:  MIDWEST ELECTRICS METALLIC RV UNITS ARE MANUFACTURED USING 16-GAUGE, GALVANIZED ZINC-COATED STEEL AND NEMA 3R CONSTRUCTION, WHICH RESISTS CORROSION AND FADING AND PROVIDES LASTING SERVICE IN OUTDOOR APPLICATIONS. UNITS ARE AVAILABLE IN SURFACE MOUNT AND EARTH BURIAL OR PADMOUNT POSTS, OFFERING A WIDE RANGE OF RECEPTACLE CONFIGURATIONS TO FIT YOUR NEEDS.
Category:  Unmetered Power Outlet Pedestals
Full Technical Description:  Unmetered Type; G90 Galvanized Steel Material; Zinc Coated Finish; 1 AWG to 300 kcmil Solid/Stranded (Copper/Aluminum), 12 to 2 AWG Solid/Stranded (Copper/Aluminum, Ground) Wire Size; UL, CUL Approval; Pad Mounting; NEMA 3R Enclosure; 100 Ampere Current Rating; 1-Phase Circuit Configuration; CB250 First Position Circuit Breaker Type; BR54U Left Position Receptacle Type; CB120 Third Position Circuit Breaker Type; CB130 Second Position Circuit Breaker Type; 5-20R2GFCI Right Position Receptacle Type; BR32U Center Position Receptacle Type; Applicable Standard NEMA, NEC; Voltage Rating 120/240 V
Manufacturer:  Midwest Electric Products, Inc.
Manufacturer Brand:  Midwest Electric Products, Inc.
Product Description:  MIDWEST U075CP4010 100A POST 50/30/20GFCI
Sub-Category:  Outdoor Pedestal Mount Power Outlet Panel
UNSPSC:  30102903
UPC 12 Digit:  784567203264
Cross Reference:
GE1LU532PS, 29-12



Share your thoughts!

5 out of 5 stars

13 reviews

Let us know what you think...

What others are saying

  1. Nicholas Scott

    Nicholas Scott

    This is commercial quality with plenty of room and features to wire a few of these in series’s if needed.While I would have liked it to be cheaper, I was not disappointed with the product and how it came together for my generator.You won’t be disappointed.

    Upvote if this was helpful (0) Downvote if this was not helpful (0) Flag for removal

    Something wrong with this post? Thanks for letting us know. If you can point us in the right direction...

  2. Parks

    Parks

    This electric box for the campers is great. It allows us to hook up just like at the camp ground.

    Upvote if this was helpful (0) Downvote if this was not helpful (0) Flag for removal

    Something wrong with this post? Thanks for letting us know. If you can point us in the right direction...

  3. Tagalong Kennels

    Tagalong Kennels

    Just what the doctor ordered

    Upvote if this was helpful (0) Downvote if this was not helpful (0) Flag for removal

    Something wrong with this post? Thanks for letting us know. If you can point us in the right direction...

  4. Peter Domeika

    Peter Domeika

    I’ve since found these at a lower price but as to the product itself it was a breeze to install and of high quality. I have 4 RV sites on my property and used this type on the last one, whereas on the first 3 I used separate boxes. That was a mistake and looks shoddy compared to these no matter how neat and tidy of an install that you do. Highly recommend.

    Upvote if this was helpful (0) Downvote if this was not helpful (0) Flag for removal

    Something wrong with this post? Thanks for letting us know. If you can point us in the right direction...

  5. Babes

    Babes

    WORK OUT GOOD 200 FEET FROM HOUSE

    Upvote if this was helpful (0) Downvote if this was not helpful (0) Flag for removal

    Something wrong with this post? Thanks for letting us know. If you can point us in the right direction...

  6. Erin Taylor

    Erin Taylor

    Exactly what we needed. Arrived almost a week earlier than estimated day of arrival.

    Upvote if this was helpful (0) Downvote if this was not helpful (0) Flag for removal

    Something wrong with this post? Thanks for letting us know. If you can point us in the right direction...

  7. Eric

    Eric

    This RV power panel is well made and supports up to a 100A feeder. You can run all three air conditions and anything else on you large 5th wheel camper.

    Upvote if this was helpful (0) Downvote if this was not helpful (0) Flag for removal

    Something wrong with this post? Thanks for letting us know. If you can point us in the right direction...

  8. D Sorrels

    D Sorrels

    This box was a life saver. I only had 30amp on my pole and it wouldn’t let me run both my AC units at the same time. Mind, you have to add a 100amp breaker in the main box in order to utilize all available power this box provides. Took a total of about half an hour to get it mounted and wired. I am going to purchase another for my other property.

    Upvote if this was helpful (0) Downvote if this was not helpful (0) Flag for removal

    Something wrong with this post? Thanks for letting us know. If you can point us in the right direction...

  9. A Wesley Hall

    A Wesley Hall

    Love it all in one.. worked out great

    Upvote if this was helpful (0) Downvote if this was not helpful (0) Flag for removal

    Something wrong with this post? Thanks for letting us know. If you can point us in the right direction...

  10. ron

    ron

    Just what I needed to hook our motor home to

    Upvote if this was helpful (0) Downvote if this was not helpful (0) Flag for removal

    Something wrong with this post? Thanks for letting us know. If you can point us in the right direction...

  11. Green Acres Lady

    Green Acres Lady

    We purchased our first RV—a Class C— which needed a 30amp connection. If we upgrade later to a larger unit, this will provide the 50amp availability and will not have to worry about rewiring! Looks very clean and neat!

    Upvote if this was helpful (0) Downvote if this was not helpful (0) Flag for removal

    Something wrong with this post? Thanks for letting us know. If you can point us in the right direction...

  12. William Miller

    William Miller

    Great product

    Upvote if this was helpful (0) Downvote if this was not helpful (0) Flag for removal

    Something wrong with this post? Thanks for letting us know. If you can point us in the right direction...

  13. Vmaxer

    Vmaxer

    GREAT

    Upvote if this was helpful (0) Downvote if this was not helpful (0) Flag for removal

    Something wrong with this post? Thanks for letting us know. If you can point us in the right direction...

×
