Lever Bypass R281CB1034 Midwest 200 Amp Manufactured Home Surface Panel- Ringless style

Original price was: $699.00.Current price is: $489.00.

Downloads:
Product Spec Sheet – Download

Availability:  | In Stock SKU: R281CB1034 Categories: ,
Quote
Calculate shipping price

Please fill in the fields below with the shipping destination details in order to calculate the shipping cost.

Description

Product Description

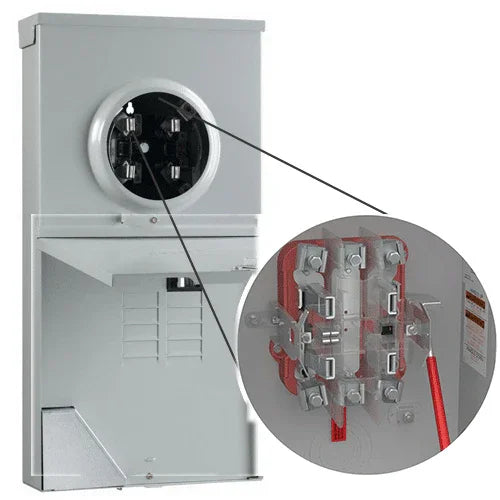

Ringless, 200 Amp, 120/240 Volt, 1-Phase, NEMA 3R, Surface Mounting Box with Lever Bypass
The R281CB1034 is a Metered Service Entrance Equipment for mobile home and manufactured homes with Lever Bypass. Where electrical power enters a building or other source, the National Electrical Code (NEC) requires electrical distribution equipment rated as “Service Entrance.” Such service equipment usually consists of one main breaker disconnect or space for up to 6 main disconnects. Midwest models meet these NEC requirements and are UL listed as service entrance equipment.

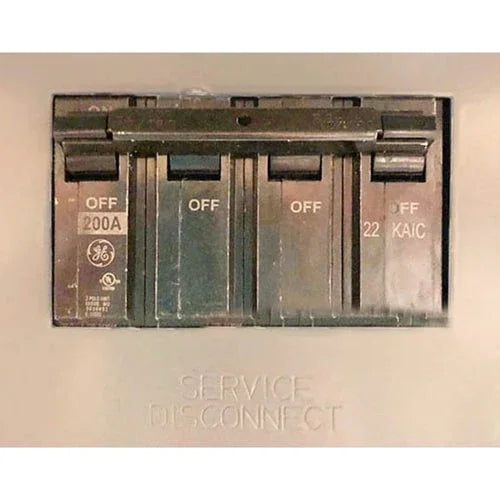

This is mobile home box manufactured by Midwest is a 200 amp panel manufactured for surface mount applications.  The service entrance box is rated with a 200 amp main breaker that is included. It has a 120/240v ring-type meter socket (meter not included) and is series wired with loop-fed lugs and 4 additional breaker spaces.

Product Specifications

UPC:  78456758816
Enclosure:  NEMA 3R
Approval:  UL
Additional Information:  Applicable Standard NEMA, NEC; Voltage Rating 120/240 V; Cabinet Dimension 14-3/8 Inch W x 4-3/4 Inch D x 28-5/8 Inch H; Mounting Surface
Catalog Number:  R281CB1034
Type:  Metered Ringless – BYPASS LEVER
Current Rating:  200 Ampere
Circuit Configuration:  1-Phase
First Position Circuit Breaker Type:  CB4200H
Wire Size:  6 to 350 KCMIL Stranded (Copper/Aluminum, Line Meter Socket), 1 to 4 AWG Stranded (Copper/Aluminum, Load Base Lugs/Neutral A), 6 to 2/0 AWG Stranded (Copper/Aluminum, Neutral/Ground B), 14 to 8 AWG Solid/14 to 4 AWG Stranded (Copper, Neutral/Ground C), 12
Material:  G90 Galvanized Steel
Finish:  Zinc Coated
CATALOG DESCRIPTION:  NATIONAL ELECTRIC CODE REQUIRES ELECTRICAL DISTRIBUTION EQUIPMENT TO BE RATED AS SERVICE ENTRANCE, WHEREVER ELECTRICAL POWER ENTERS A BUILDING OR OTHER STRUCTURE. SERVICE ENTRANCE PRODUCTS ARE TYPICALLY UTILIZED ON SINGLE-FAMILY RESIDENCES AND MOBILE HOMES. MIDWEST ELECTRIC OFFERS A BROAD RANGE OF SURFACE MOUNT AND PEDESTAL UNITS, FACTORY ASSEMBLED AND WIRED. PEDESTAL UNITS COME STANDARD WITH LOOP FEED LUGS TO REDUCE INSTALLATION TIME AND LABOR EXPENSE. SERVICE ENTRANCE EQUIPMENT IS MADE OF HEAVY, GALVANIZED G-90 STEEL, PREVENTING CORROSION AND FADING.
Category:  Metered Power Outlet Panels
Full Technical Description:  Metered Ringless Type; G90 Galvanized Steel Material; Zinc Coated Finish; 6 to 350 kcmil Stranded (Copper/Aluminum, Line Meter Socket), 1 to 4 AWG Stranded (Copper/Aluminum, Load Base Lugs/Neutral A), 6 to 2/0 AWG Stranded (Copper/Aluminum, Neutral/Ground B), 14 to 8 AWG Solid/14 to 4 AWG Stranded (Copper, Neutral/Ground C), 12 to 8 AWG Solid/12 to 4 AWG Stranded (Neutral/Ground C) Wire Size; UL Approval; NEMA 3R Enclosure; 200 Ampere Current Rating; 1-Phase Circuit Configuration; CB4200H First Position Circuit Breaker Type; Applicable Standard NEMA, NEC; Voltage Rating 120/240 V; Cabinet Dimension 14-3/8 Inch W X 4-3/4 Inch D X 28-5/8 Inch H; Mounting Surface
Manufacturer:  Midwest Electric Products, Inc.
Manufacturer Brand:  Midwest Electric Products, Inc.
Product Description:  MIDWEST R281CB1034 200A SURFACE METERED 14X28 LEVER BYPASS
Sub-Category:  Outdoor Surface Mount Power Outlet Panel
UNSPSC:  39121102
UPC 12 Digit:  784567588163
