Merrill Frost Proof Hydrant Hide-Drant Removable and Sanitary Hydrant – HIDE27502 – PVC, 2′ Bury Depth
$162.00
Please fill in the fields below with the shipping destination details in order to calculate the shipping cost.
- Description
- Discussion (0)
Description
Product Description
The Merrill Hide-Drant is a sanitary yard hydrant that has been approved as such in even the most restrictive states like; Illinois, Indiana, Michigan, Ohio, and Wisconsin. Available in stainless or PVC and with a curved or straight neck, Merrill provides a sanitary hydrant option for you. The Hide-Drant’s standpipe can be removed with three counter-clockwise turns, then drain the standpipe of water and your Hide-Drant is frost-proof for freezing temps. The stop valve at the bottom of the Hide-Drant is automatically opened when the standpipe is reinstalled. The seals between the stop valve and the standpipe are water-tight before the valve is reopened. The Hide-Drant’s outlet can be set to any direction by simply tightening the standpipe the three turns from where you want the outlet to be.
Specifications:
Standard All PVC Galvanized 3/4″ Hide Drant Complete
- Inlet – 3/4″ Female NPT into Stainless Steel
- Outlet – 3/4″ No-Lead Brass Vacuum Breaker
- 3/4″ Galvanized Stand Pipe
- Bottom Case 1-1/2″ Sch. 40 PVC
- Repairable Stainless Steel Stop Valve
- * ASSE Approved Vacuum Breaker and Outlet Valve Included ♦ Ball Valve Included
Features
- Frost proof: when used correctly, simply turn counter-clockwise three turns to disconnect and remove stand pipe, then drain stand pipe for freezing temperatures, very simple, no tools required to remove and reinstall stand pipe
- Stop valve at bottom of Hide-Drant® is automatically opened when stand pipe is reinstalled, very simple, reliable stop valve, one moving part, stainless steel spring, also designed so field repairable
- Seals between stop valve and stand pipe holds water before valve is reopened
- Outlet can be in any direction – by simply pivoting outlet counter-clockwise to direction desired, approximately three revolutions needed to remove stand pipe, do not over tighten stand pipe by forcing clockwise revolution of outlet, Only hydrant that allows outlet to be in any direction, no tools required – pivots by hand
- Non-corrosive construction to insure a long operating life, stop valve available in PVC and other components are made of non-corrosive materials, quality, non-corrosive construction for years of service
- Bottom case has one way flapper drain to remove any spilled water in case, plus cover over drain on outside of case protects drain from backfill, helps bottom case and stop valve to stay sanitary
- No tools required (after initial installation) – hydrant riser pipe can be removed and reinstalled in seconds with only a few turns, do not use tools
- Removable riser pipe so you can mow right over the bottom case and improves appearance of landscape for additional applications
- No lead compliance – models available in both yard hydrant and straight models, that are no Lead
- 1-1/2 in SCH 40 PVC bottom case
- 3/4 in SCH 80 PVC stand pipe
- 3/4 in FNPT into extra heavy wall PVC Inlet
- 3/4 in no lead brass vacuum breaker outlet
Includes
| Domestic/Import | Domestic |
| Shut-Off Type | Pivot |
| Overall Length | 52 in |
| Series | Hide-Drant® |

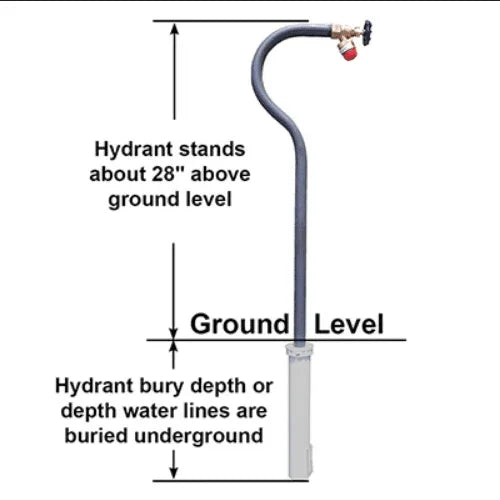

| Bury Depth | 2 ft |
| Nominal Size | 3/4 in |
| End Style | FNPT |
| Type | Standard Frost-Proof |
